Wisproof Granule Green

Wisproof Granule Green is a bitumen-based waterproofing membrane with high oil content and non-woven polyester reinforcement, providing excellent elasticity to accommodate concrete movement. It is an anti-leakage protection solution for buildings, offering stable performance and cost efficiency for a wide range of construction applications.

- Roll Size: 1 m × 10 m
- Roll Weight: 45 kg
- Thickness: 3.5 mm

Flexible & Crack Resistant

Adapts to concrete movement without damaging the waterproofing layer.

High Adhesion Strength

Forms a strong bond when heat-applied onto concrete surfaces.

All-Weather Resistance

Durable under exposure to heat, rain, and strong winds.

Long-Lasting Performance

With its flexible and weather-resistant properties, WISPROOF maintains strong and durable performance over a long service life.

Description	Unit	3 mm / 4 mm	Mineral	Test Result	Standard
Length	m	10-1%	10-1%	MLV	EN 1848-1
Width	m	1-1%	1-1%	MLV	EN 1848-1
Thickness	mm	3 / 4	-	MDV ±10%	EN 1849-1
Mass per Unit Area	kg/m²	-	4,5	MDV ±10%	EN 1849-1
Tensile Properties: Maximum Tensile Strength (Longitudinal / Transversal Direction)	N/50 mm	400 300	400 300	MDV ±20%	EN 12311-1
Tensile Properties: Elongation (Longitudinal / Transversal Direction)	%	35 35	35 35	MDV ±2 abs / MDV ±15 abs	EN 12311-1
Tear Resistance (Nail) (Longitudinal / Transversal Direction)	N	130 130	130 130	MDV ±30%	EN 12310-1
Resistance to Impact	mm	700	700	MLV	EN 12691 / A
Resistance to Static Load	kg	10	10	MLV	EN 12730-1 / B
Flexibility at Low Temperature	°C	0	0	MLV	EN 1109
Flow Resistance at Elevated Temperature	°C	130	130	MLV	EN 1110
Adhesion of Granules	%	NPD	< 25%	MDV	EN 12039

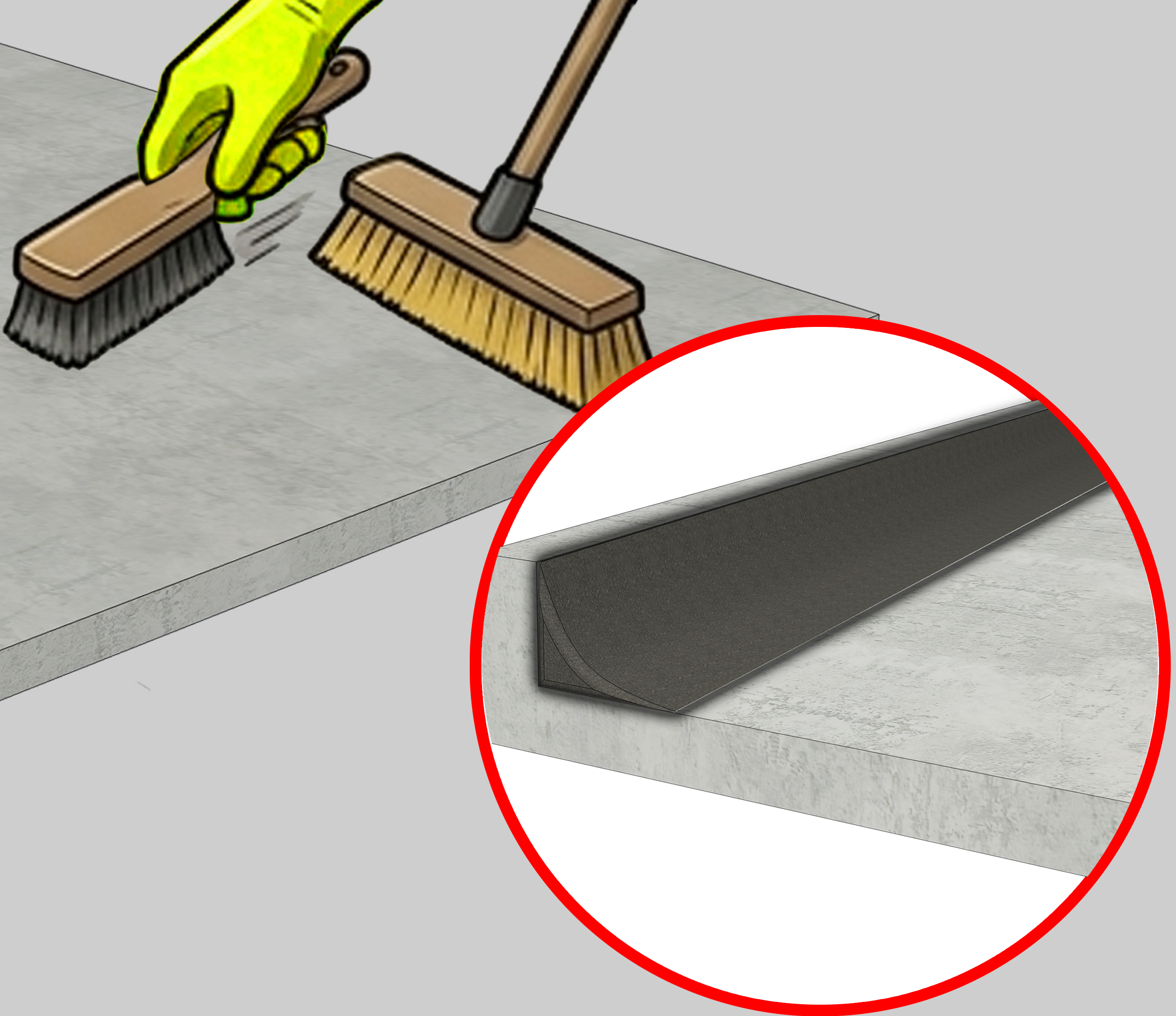

Ensure the concrete roof slab is clean, dry, and free from dust, debris, oil, and standing water. Repair any hairline cracks using instant cement or sealant until the surface is level and smooth.

1. Ensure the concrete roof slab is clean, dry, and free from dust, debris, oil, and standing water. Repair any hairline cracks using instant cement or sealant until the surface is level and smooth.

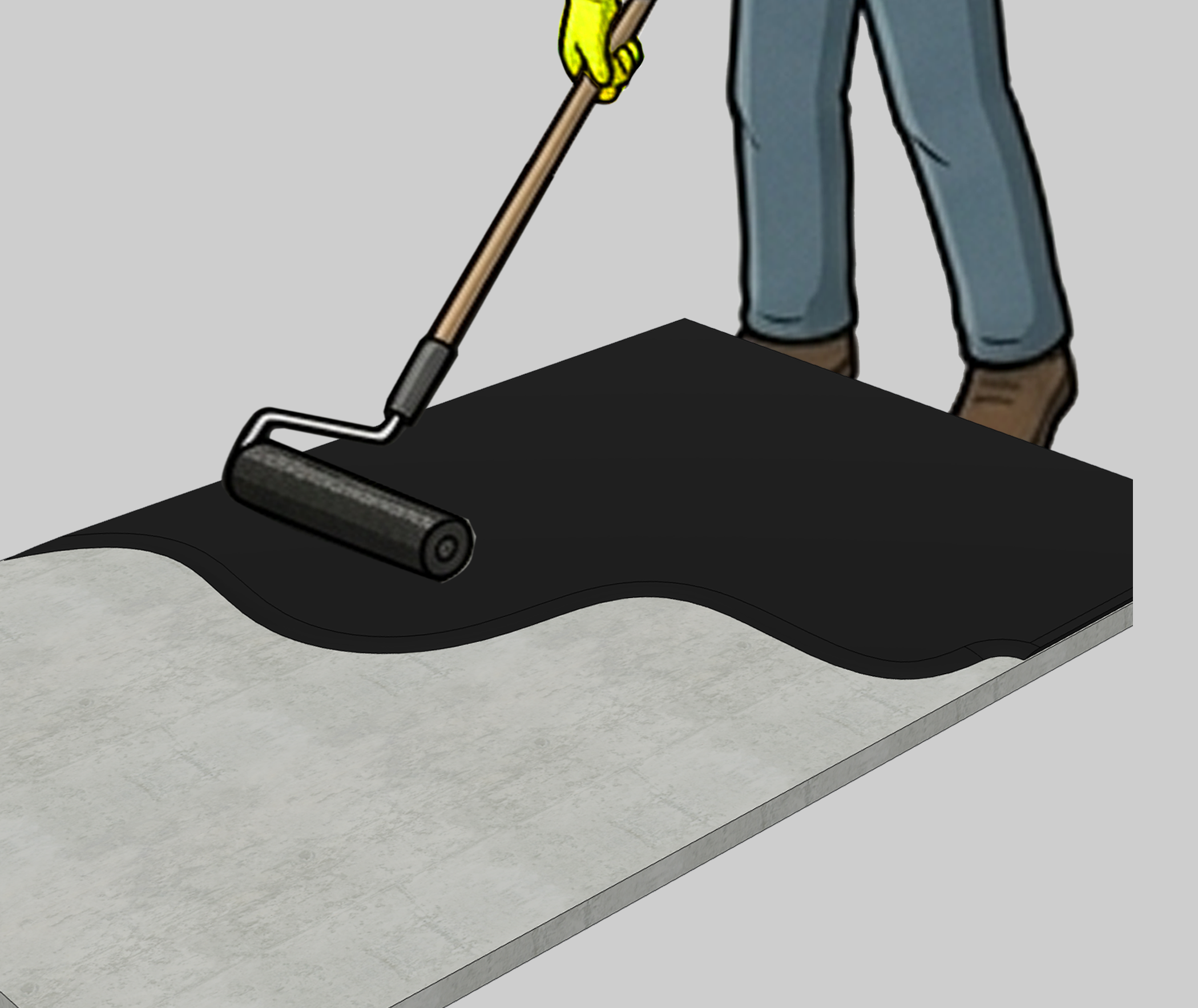

Apply bitumen primer evenly over the entire surface. Allow it to dry to a tack-free condition (approximately 2–4 hours, depending on weather conditions). The primer acts as a bonding layer between the concrete substrate and the membrane.

2. Apply bitumen primer evenly over the entire surface. Allow it to dry to a tack-free condition (approximately 2–4 hours, depending on weather conditions). The primer acts as a bonding layer between the concrete substrate and the membrane.

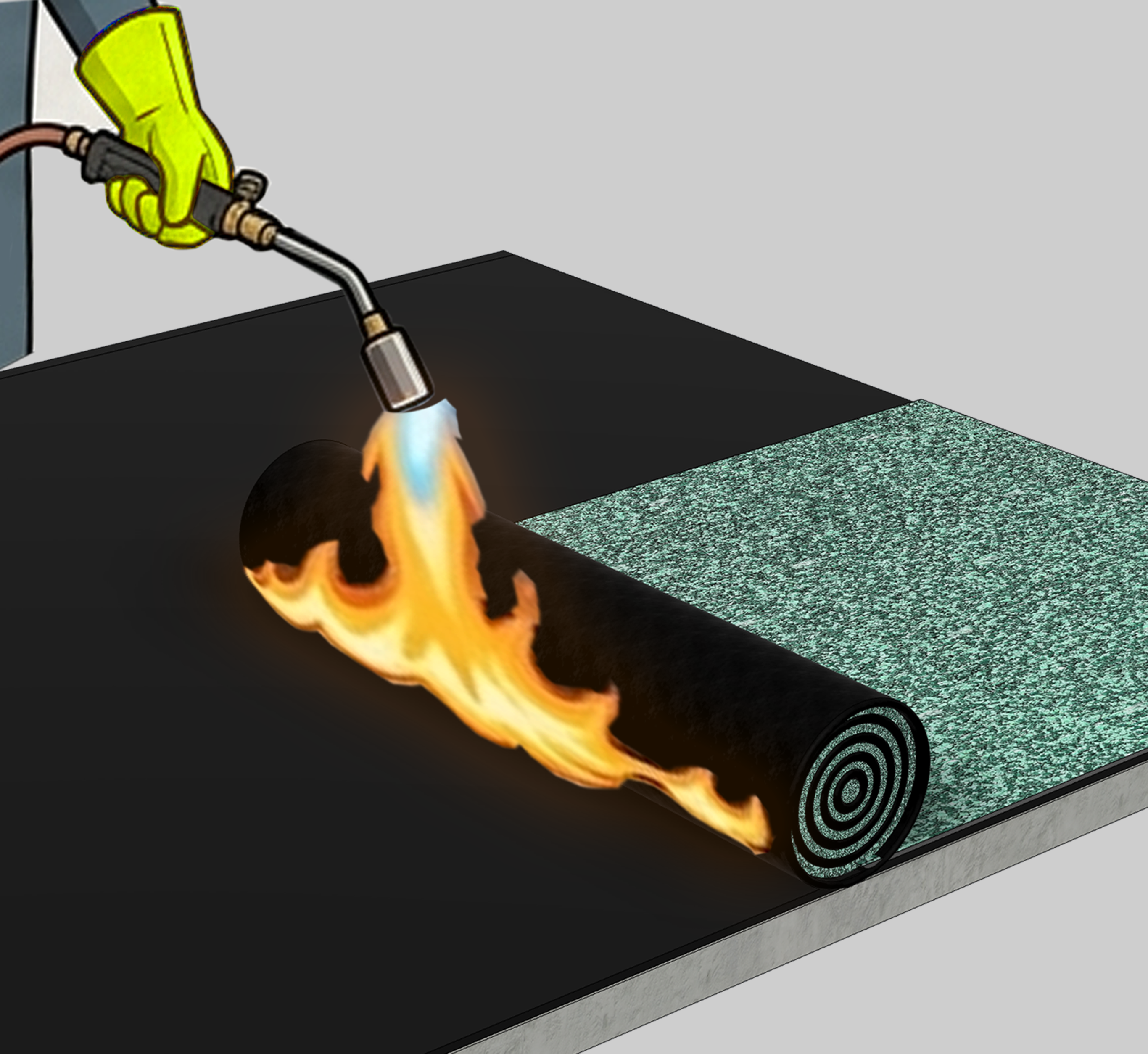

Position the Wisproof membrane over the application area. Heat the underside of the membrane using a gas torch, then gradually roll it forward while continuously applying heat. Ensure the flame is evenly distributed to achieve proper adhesion.

3. Position the Wisproof membrane over the application area. Heat the underside of the membrane using a gas torch, then gradually roll it forward while continuously applying heat. Ensure the flame is evenly distributed to achieve proper adhesion.

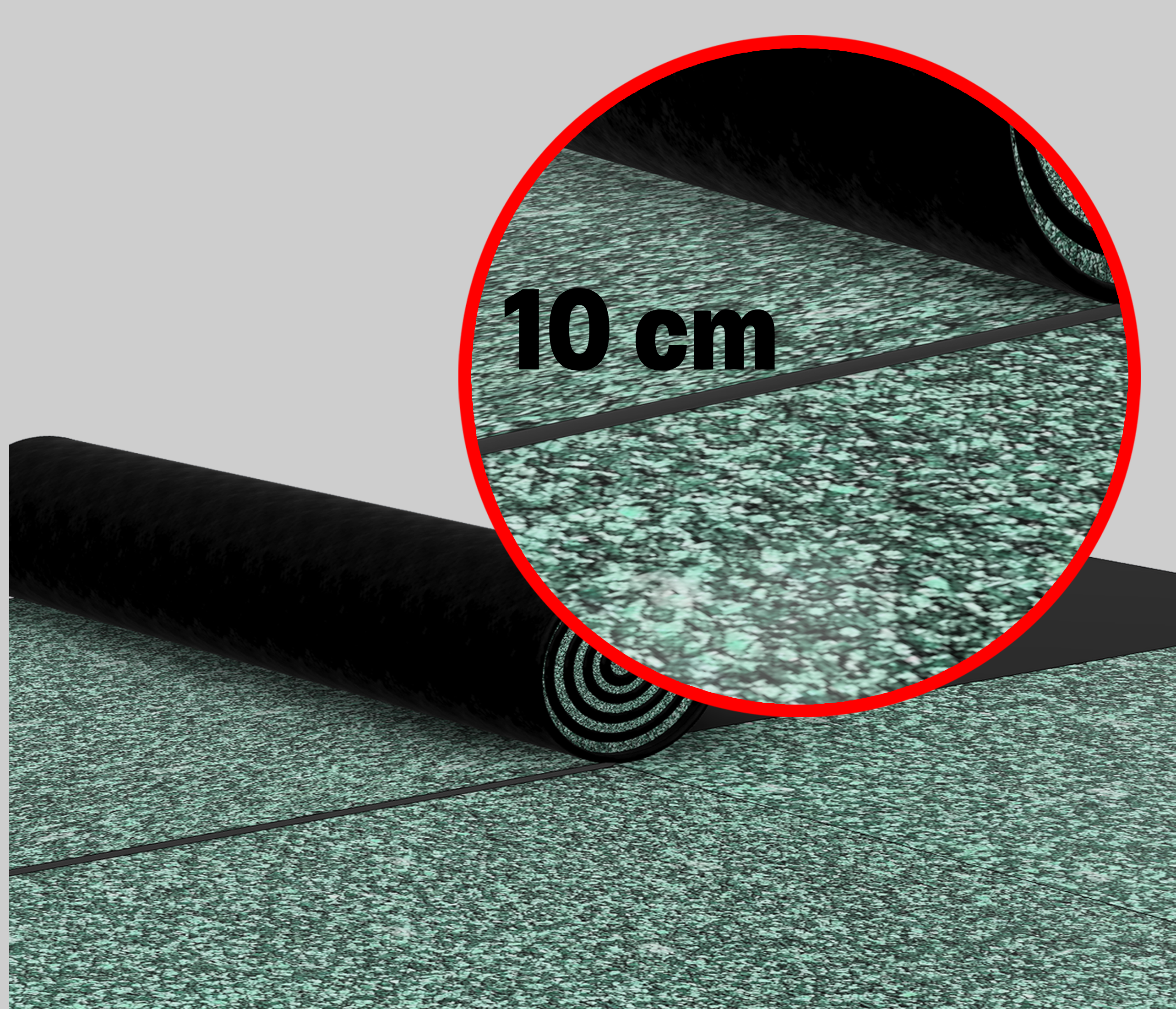

Install each membrane sheet with an overlap of 10–15 cm. Carefully heat the overlapping areas and press firmly to ensure a secure and watertight bond.

4. Install each membrane sheet with an overlap of 10–15 cm. Carefully heat the overlapping areas and press firmly to ensure a secure and watertight bond.

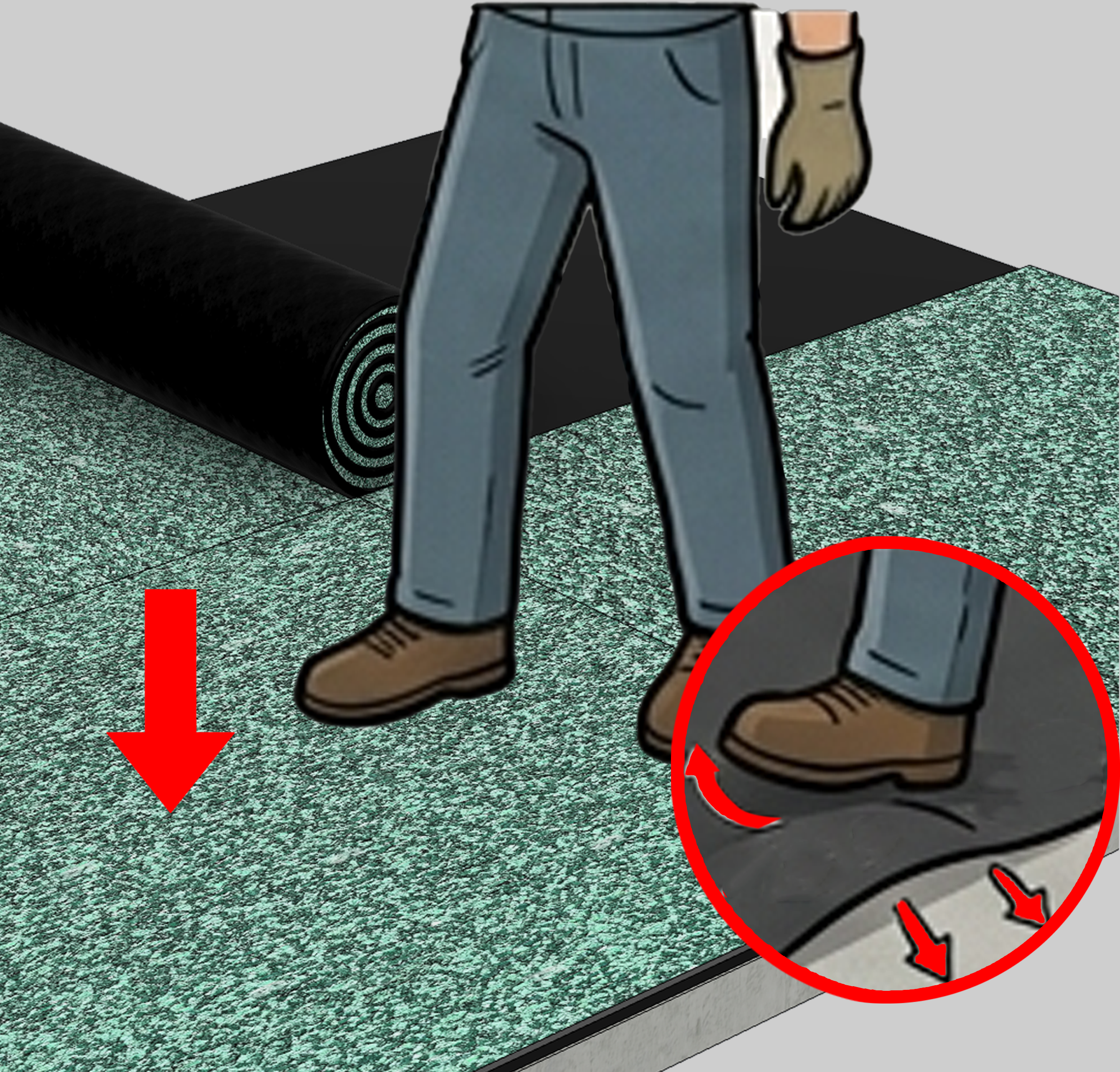

5. Press the installed membrane using foot pressure or a roller to ensure full contact with the substrate and to eliminate trapped air or bubbles.

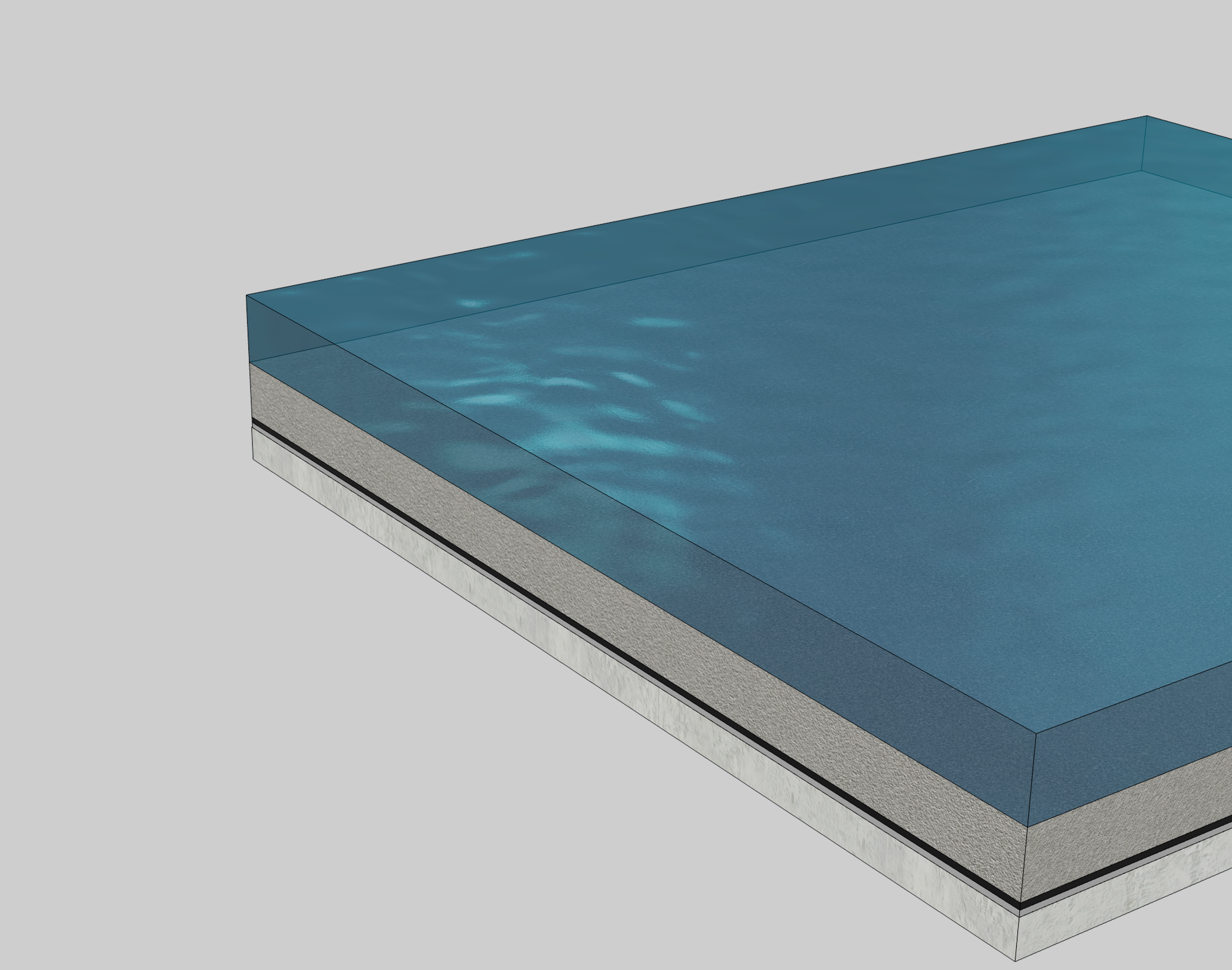

After installation is complete and the membrane has cooled, perform a ponding test for 24–48 hours to ensure the system is watertight and free from leakage.

6. After installation is complete and the membrane has cooled, perform a ponding test for 24–48 hours to ensure the system is watertight and free from leakage.
