Polyshield Select 40 ECO

Polyshield Select 40 ECO is a premium aluminum foil bubble insulation designed to reflect up to 97% of radiant heat. With aluminum foil thickness ranging from 9 microns, Polyshield delivers maximum thermal protection for both project and retail applications.

All-Weather Durability

Remains durable and performs optimally even under heat, rain, and strong winds.

Safe & Environmentally Friendly

Polyshield helps reduce energy consumption while supporting environmental sustainability.

Cooler All Day

Reflects up to 97% of radiant heat, helping maintain a more stable and comfortable indoor temperature.

Energy & Cost Efficient

Reduces air conditioning workload, leading to lower energy consumption and electricity costs.

4x Faster Installation

The integrated aluminum foil and bubble layer allow for quicker and more efficient installation.

Asbestos-Free

Made from pure aluminum foil without asbestos, reducing the risk of respiratory issues and lung disease.

Thickness	Bubble Diameter	Foil Thickness	Roll Size	Roll Weight	Roll Diameter	Yield
± 4,0 mm	10 mm	9 micron + 9 micron	1,2 m × 20 m	± 6,0 kg	± 550 mm	235 g/m²

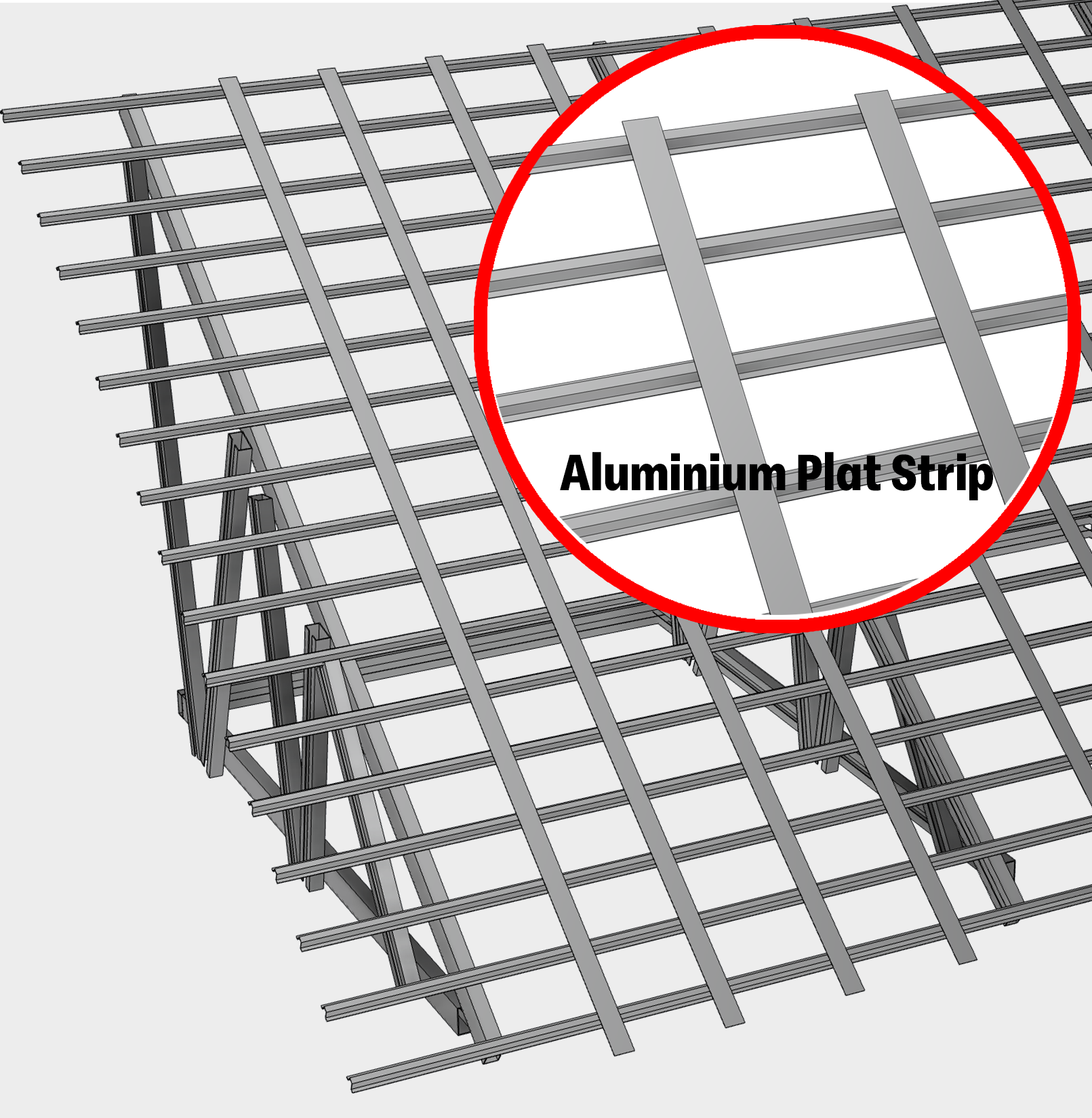

Install and stretch aluminum flat bars (3–4 cm wide) in parallel at 40 cm intervals. These flat bars act as supports to keep the Polyshield insulation tight (prevent sagging) and neatly aligned. Ensure the bars are firmly stretched before securing them with a cordless drill.

1. Install and stretch aluminum flat bars (3–4 cm wide) in parallel at 40 cm intervals. These flat bars act as supports to keep the Polyshield insulation tight (prevent sagging) and neatly aligned. Ensure the bars are firmly stretched before securing them with a cordless drill.

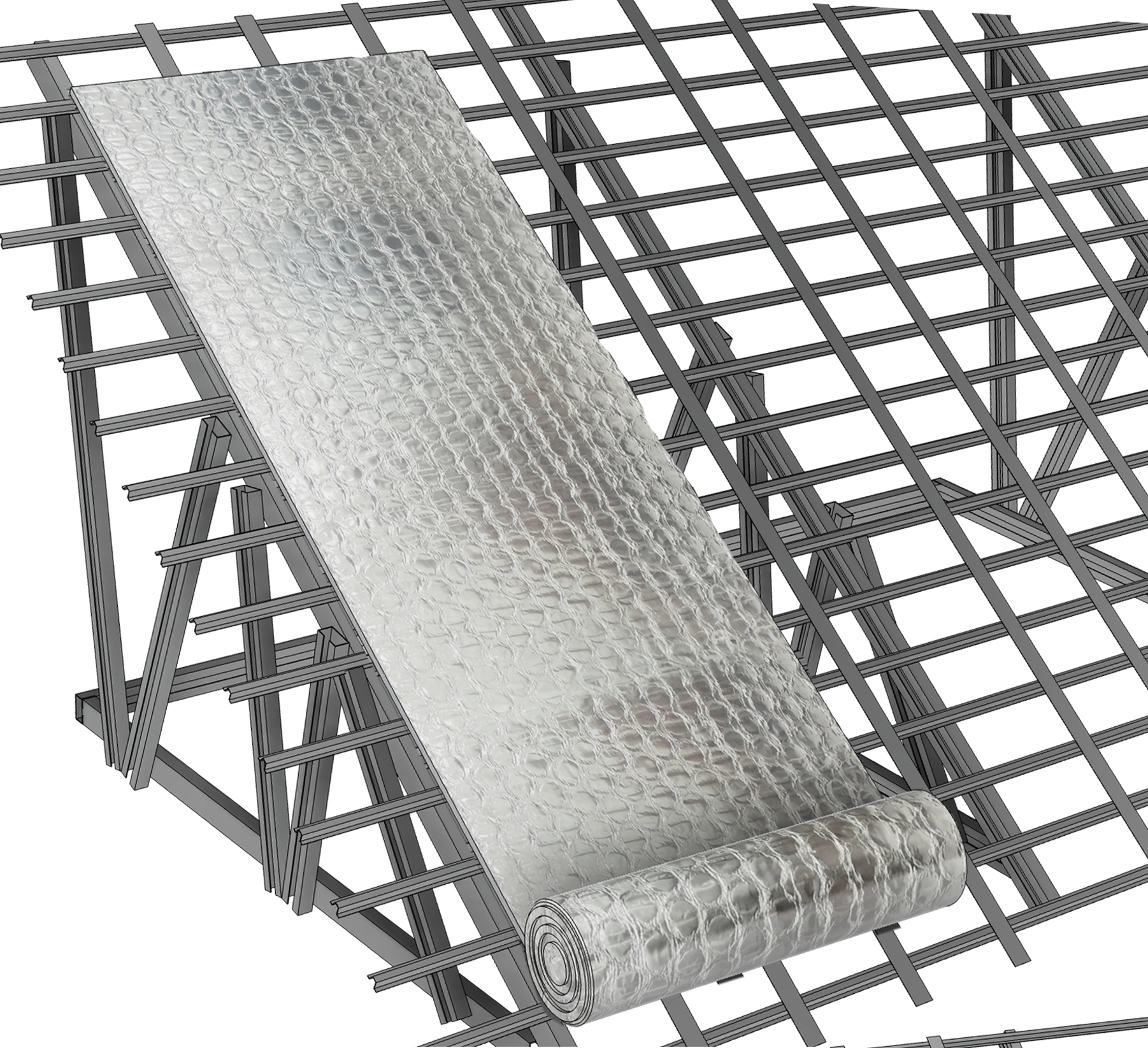

2. Unroll Polyshield lengthwise, either vertically or horizontally. Begin installation from the bottom and work upward.

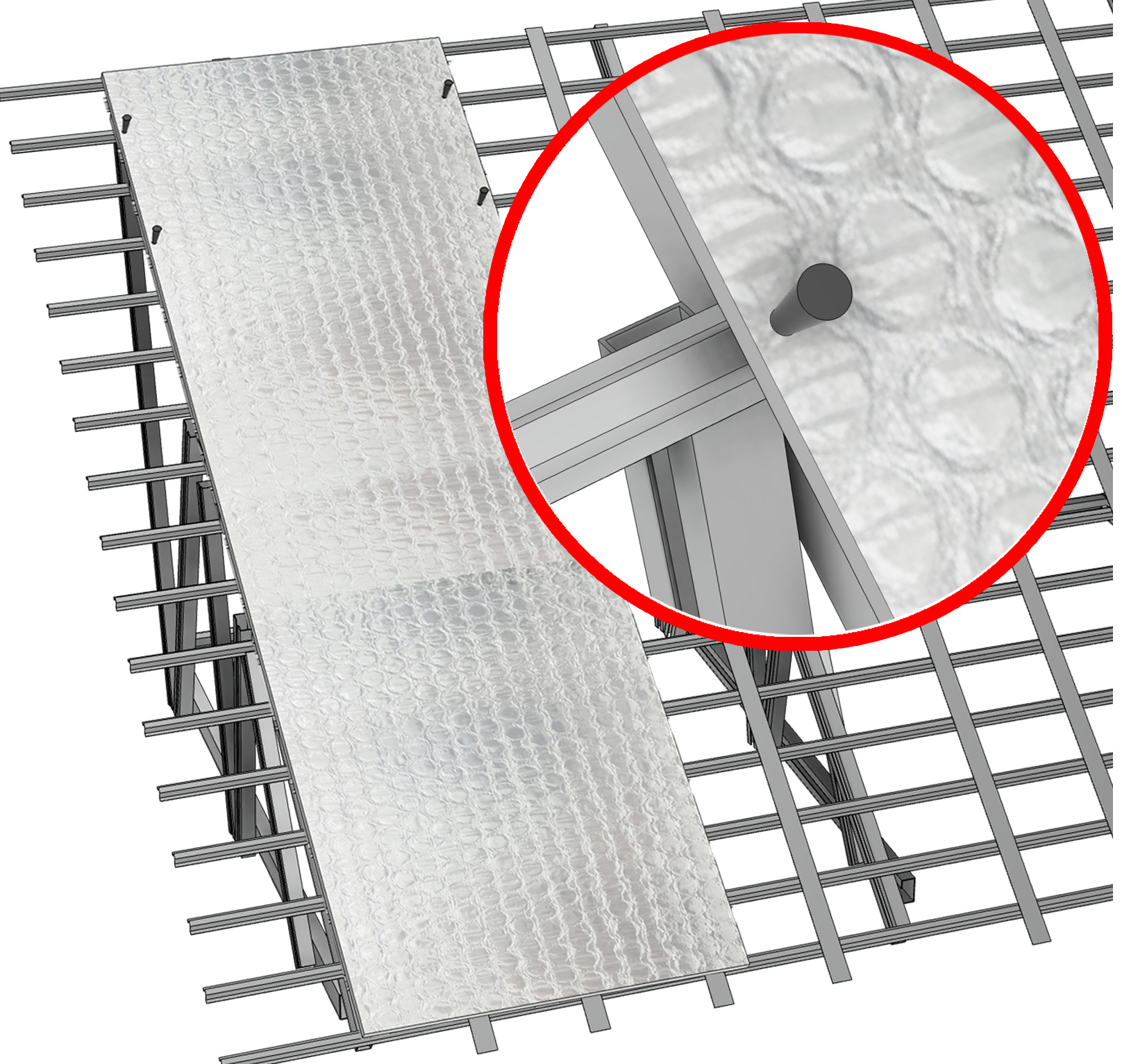

Secure the edge of the first sheet using screws or roofing nails to prevent movement during installation. Pull the sheet tight to avoid sagging, then secure the center area.

3. Secure the edge of the first sheet using screws or roofing nails to prevent movement during installation. Pull the sheet tight to avoid sagging, then secure the center area.

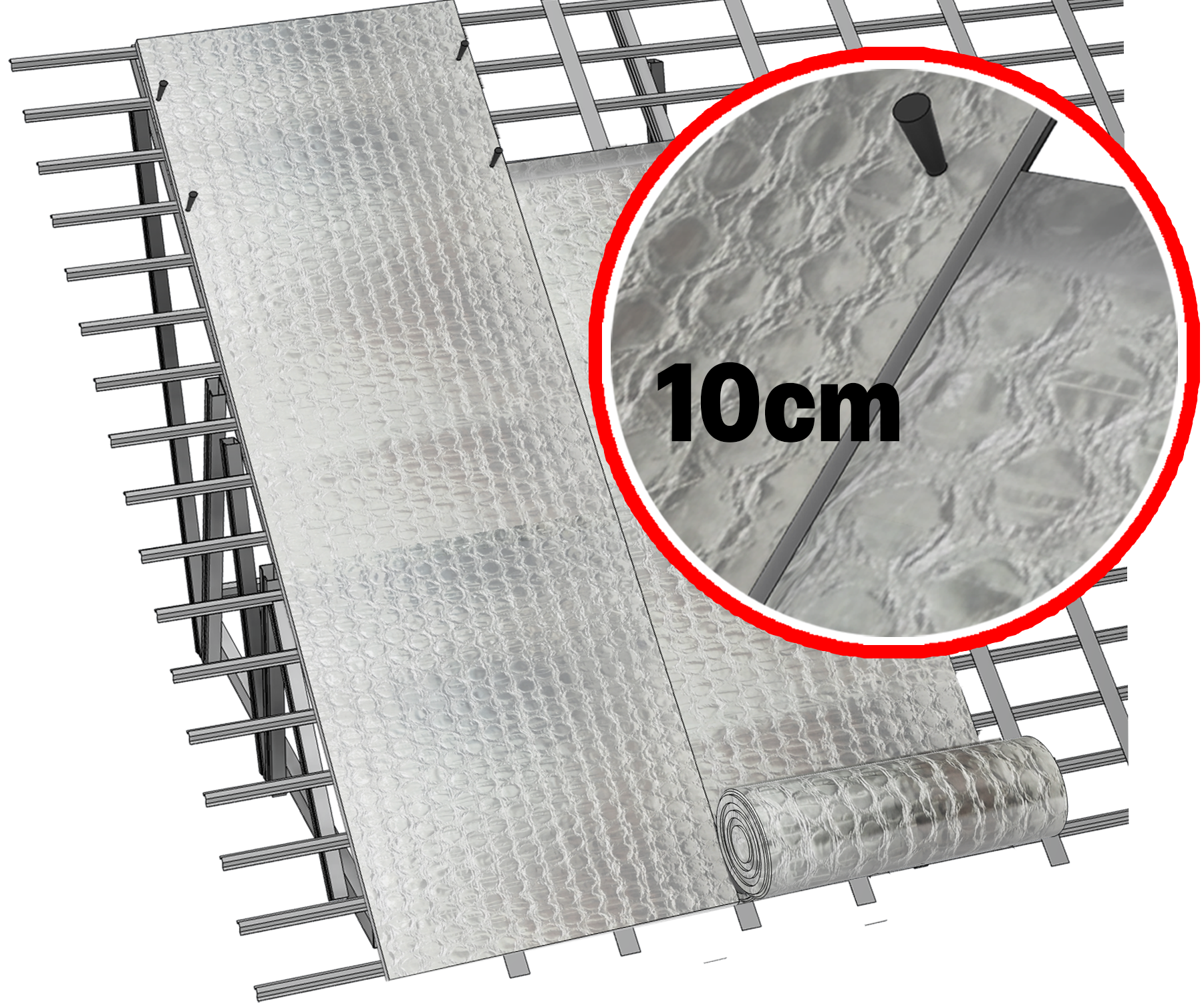

4. Install the next sheet beside the first with a minimum overlap of 10 cm.

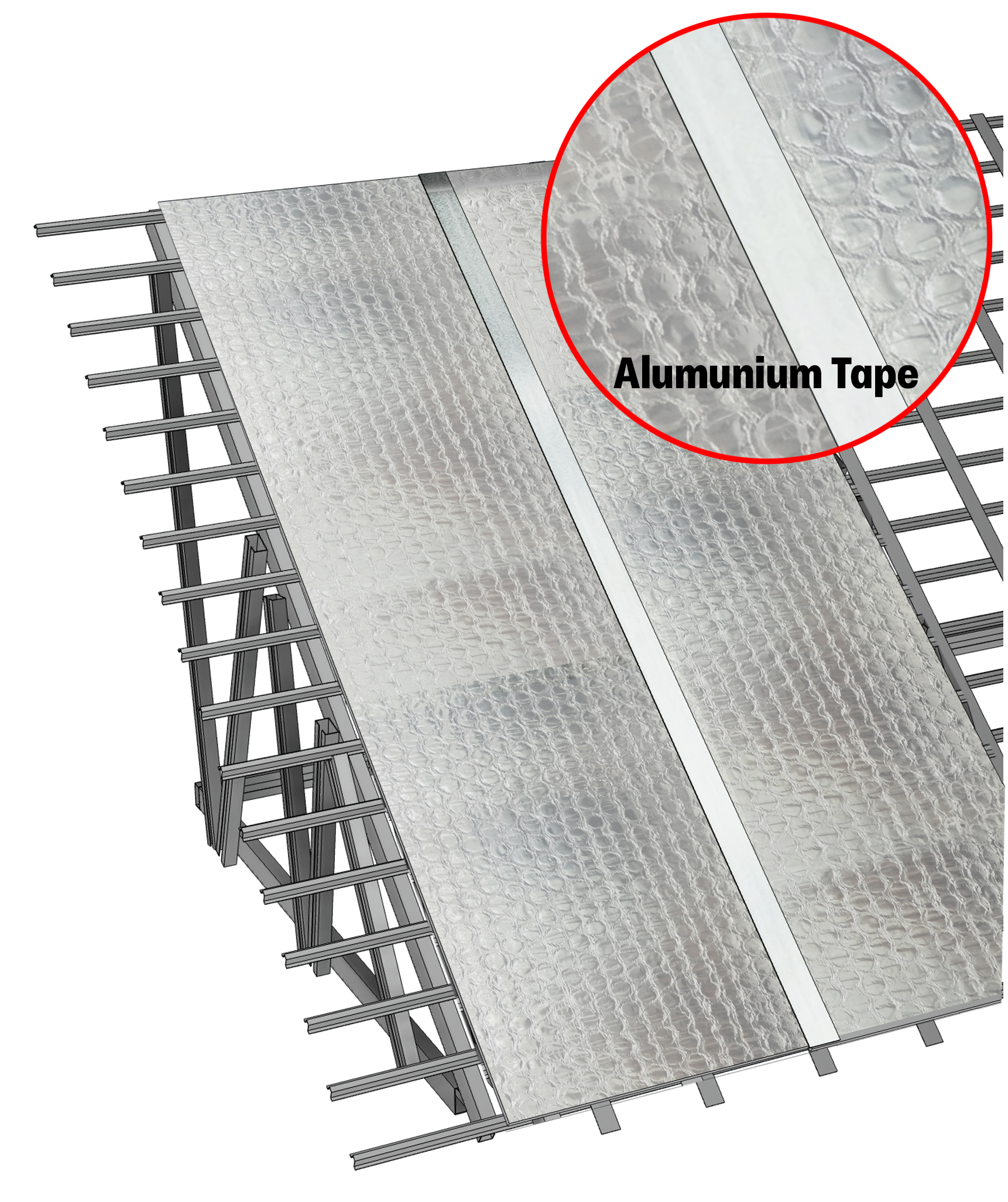

Seal all overlapping joints with aluminum tape to ensure optimal protection. Make sure the entire surface is installed evenly and neatly before proceeding.

5. Seal all overlapping joints with aluminum tape to ensure optimal protection. Make sure the entire surface is installed evenly and neatly before proceeding.
