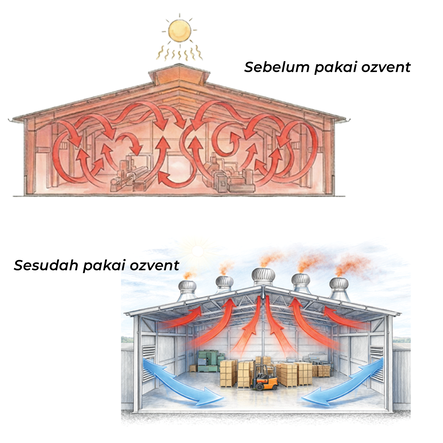

Ozvent 24 Inch is an eco-friendly roof turbine ventilator designed to naturally remove hot and humid air from indoor spaces without the need for electricity. With a 24-inch size, it provides efficient ventilation for larger and industrial buildings. Made from 99.9% pure AA1100-grade aluminum and built to Australian standards, Ozvent offers excellent corrosion resistance, weather durability, and optimal performance with or without wind. Ideal for industrial applications.
.png)
Maintains natural air circulation without the need for electricity.
Designed to withstand rain without the risk of leakage or jamming.
Designed for smooth rotation and long service life
Made from AA1100-grade aluminum for superior corrosion resistance.
Suitable for various roof types, from residential homes to industrial buildings.
Product protection for up to 5 years.
1. Determine the installation position and mark the area. Draw a cut-out pattern on the roof with a size of approximately 50 × 65 cm up to 50 × 70 cm using a marker.
2. Lay the flashing sheet over the installation area, covering the marked section. Secure it to the roof structure using screws at 20 cm intervals to prevent movement.
3. Cut the roof along the marked outline using metal shears. Ensure clean edges and remove any debris to prevent potential corrosion.
4. Insert the upper part of the base flashing beneath the flashing sheet to prevent water ingress. Secure the base flashing to the roof structure using a drill and screws around the perimeter.
5. Install the ventilator collar (neck) on top of the base flashing, then fasten it securely with screws.
6. Place the Ozvent turbine unit on top of the collar and secure it with screws. Apply sealant to all screw heads and along the joints between the base flashing and the flashing sheet. Ensure there are no gaps that could allow rainwater to enter.
* * Screws required per unit: approx. 50 pcs.
