Ozvent 14 Inch is an eco-friendly roof turbine ventilator designed to naturally remove hot and humid air from indoor spaces without the need for electricity. With a 14-inch size, it provides efficient ventilation for residential use. Made from 99.9% pure AA1100-grade aluminum using Australian-standard technology, Ozvent offers excellent corrosion resistance, weather durability, and optimal performance with or without wind. Ideal for residential applications.
.jpeg)

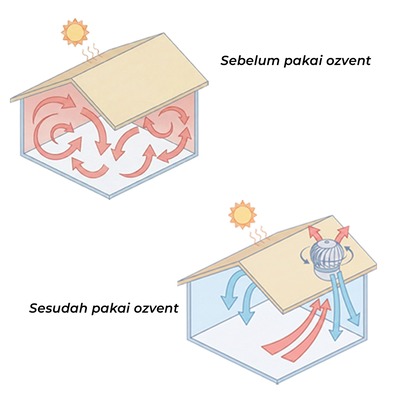

Maintains natural air circulation without the need for electricity.
Designed to withstand rain without the risk of leakage or jamming.
Designed for smooth rotation and long service life
Made from AA1100-grade aluminum for superior corrosion resistance.
Suitable for various roof types, from residential homes to industrial buildings.
Product protection for up to 5 years.
1. Select a location at the highest part of the roof, near the ridge. Place the base flashing on the roof, then mark the inner opening (30–36 cm diameter). Cut the roof along the marked outline.
2. Position the base flashing over the opening, ensuring the upper edge is tucked under the roof sheets to prevent rainwater ingress. Secure it to the roof structure using roofing screws.
3. Use a spirit level to ensure the collar is properly aligned and vertical, allowing smooth and stable turbine rotation.
4. Insert the turbine head into the collar, then tighten the screws securely.
5. Apply silicone sealant evenly along all joints and around the base flashing to prevent leakage.
* * Screws required per unit: approx. 50 pcs.
