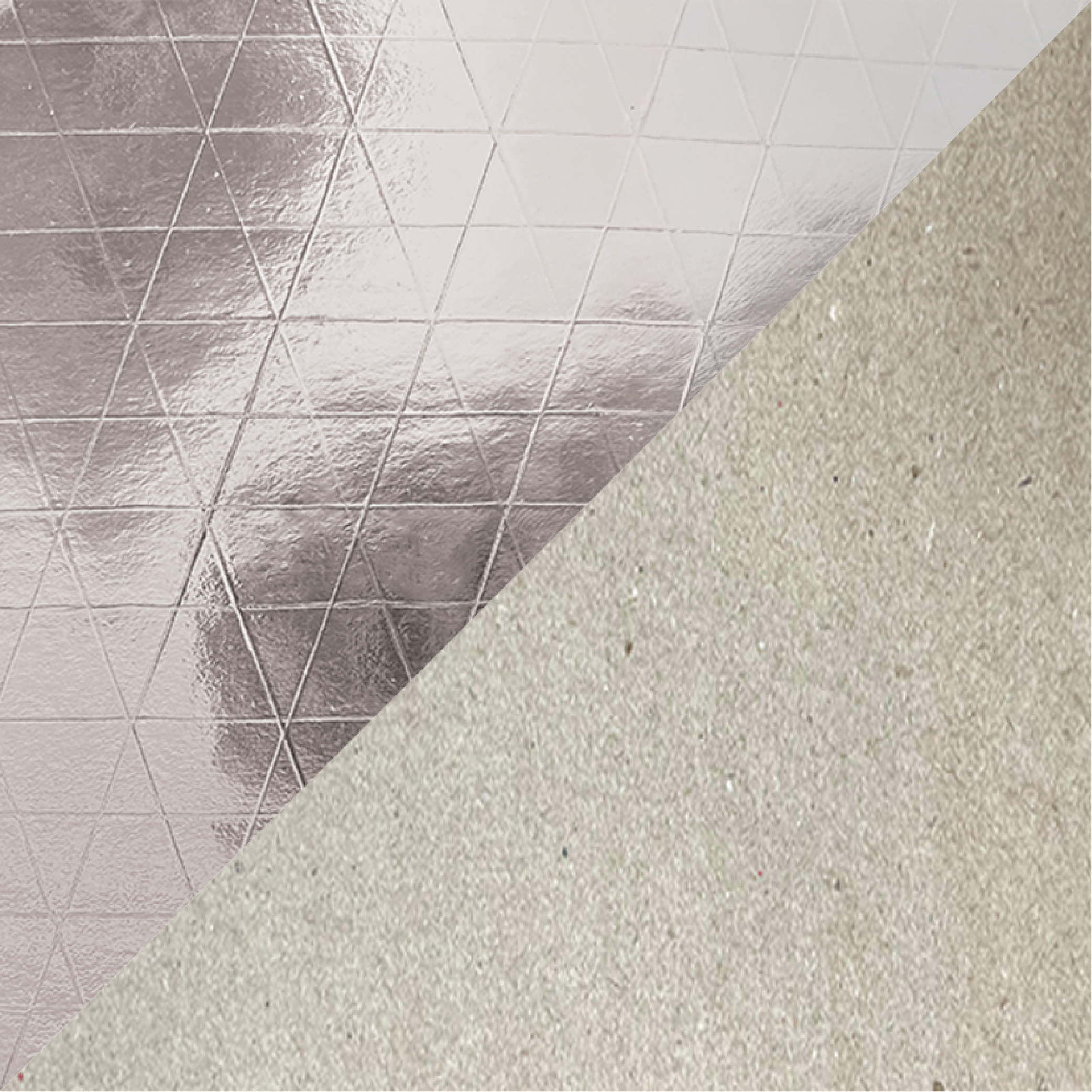

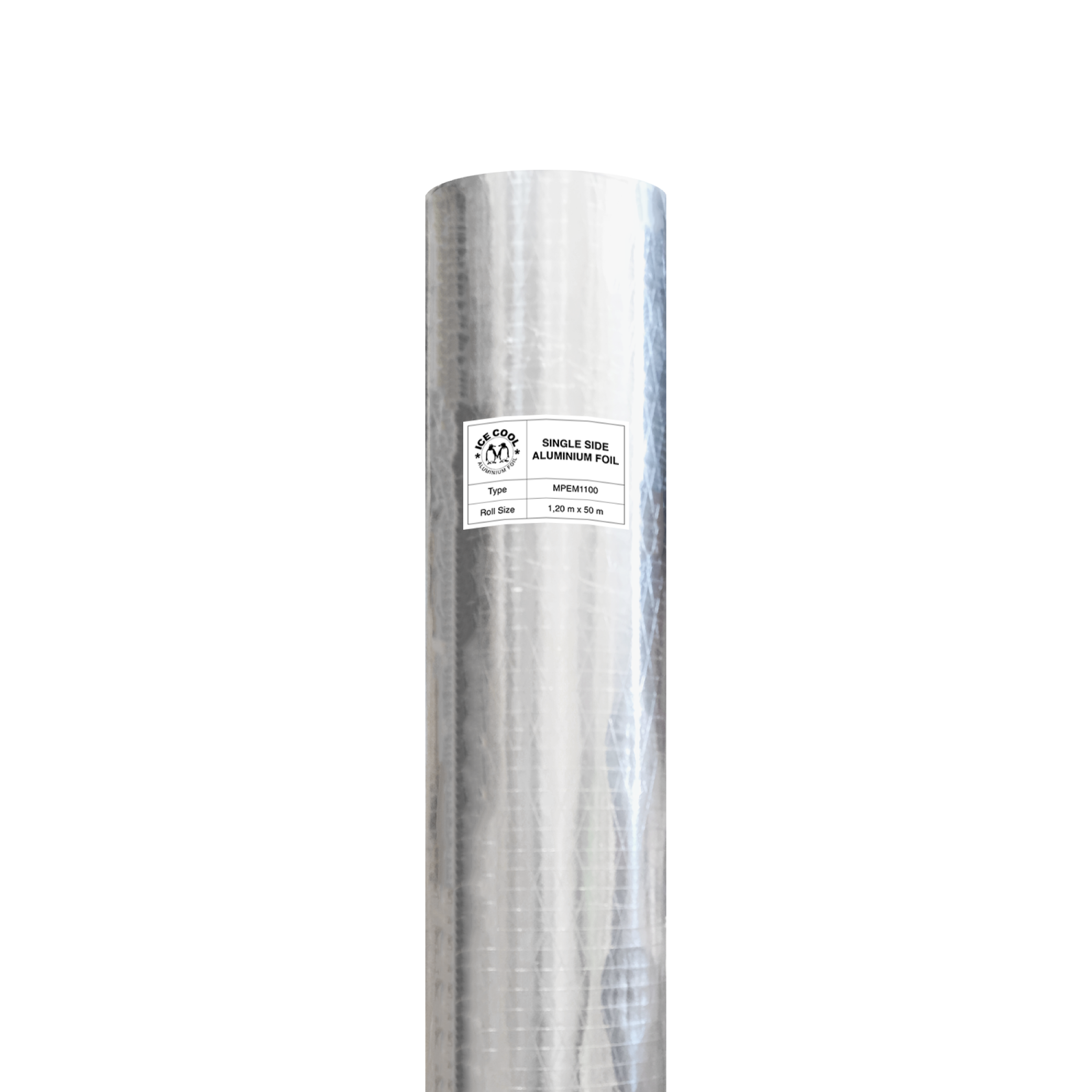

Ice Cool Paper Foil Single is a single-sided aluminum foil insulation that effectively reflects radiant heat, helping keep indoor spaces cooler and more comfortable. Reinforced with kraft paper and a 3-directional fiber scrim, it provides a reliable and cost-effective thermal insulation solution for a wide range of building applications.
An ideal facing material for glasswool and rockwool insulation, providing added durability and protection.
Designed for quick and easy installation across a wide range of building applications.
Reduces cooling loads, helping air conditioning systems operate more efficiently while lowering energy consumption.
Reflects radiant heat to help maintain a cooler and more comfortable indoor environment.
Maintains reliable thermal performance in a wide range of weather conditions.

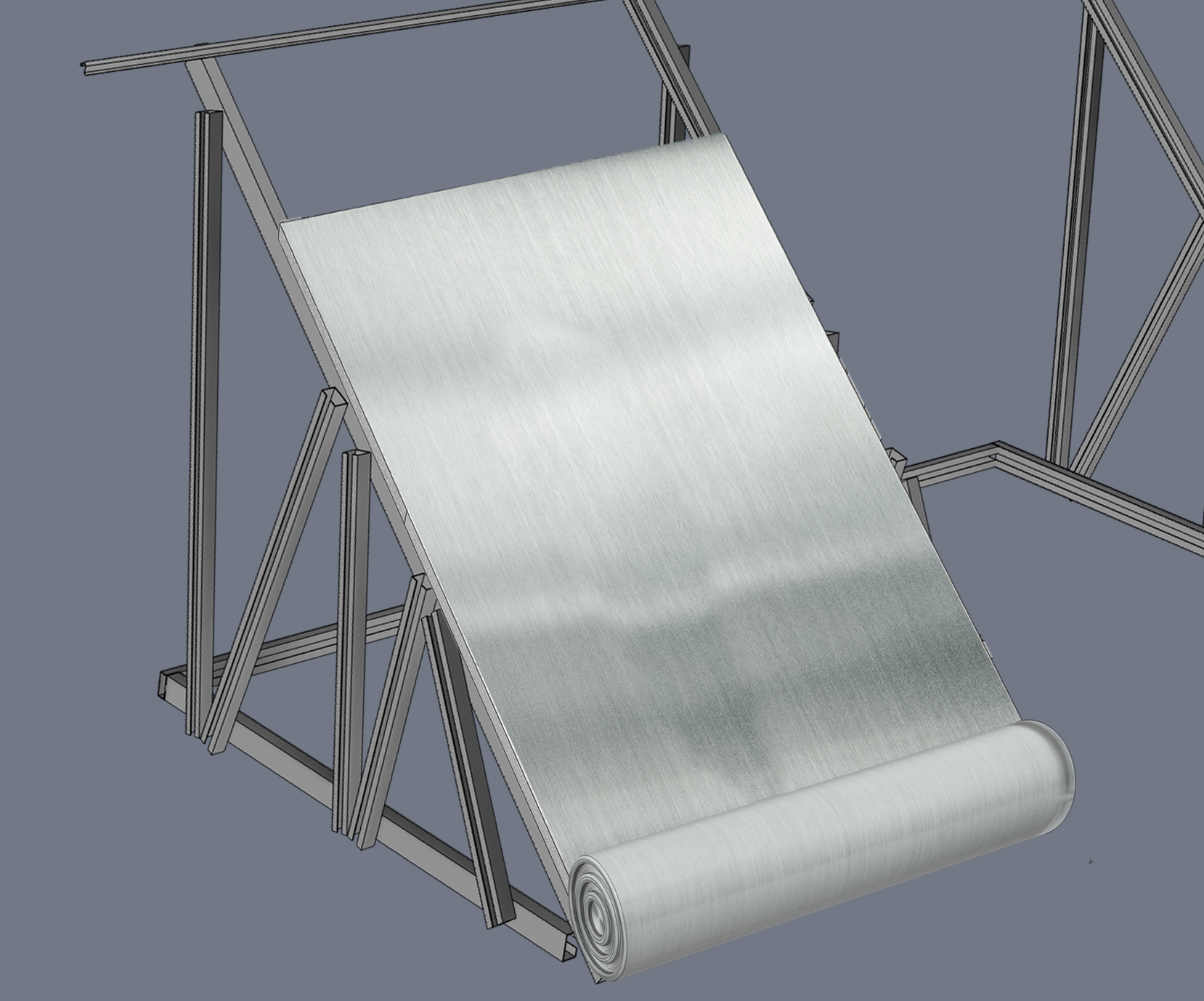

1. Measure the spacing between the roof purlins or roof framing. Unroll the Ice Cool insulation across the roof structure, either horizontally or vertically. Start installation from the eaves and work upward toward the roof ridge.

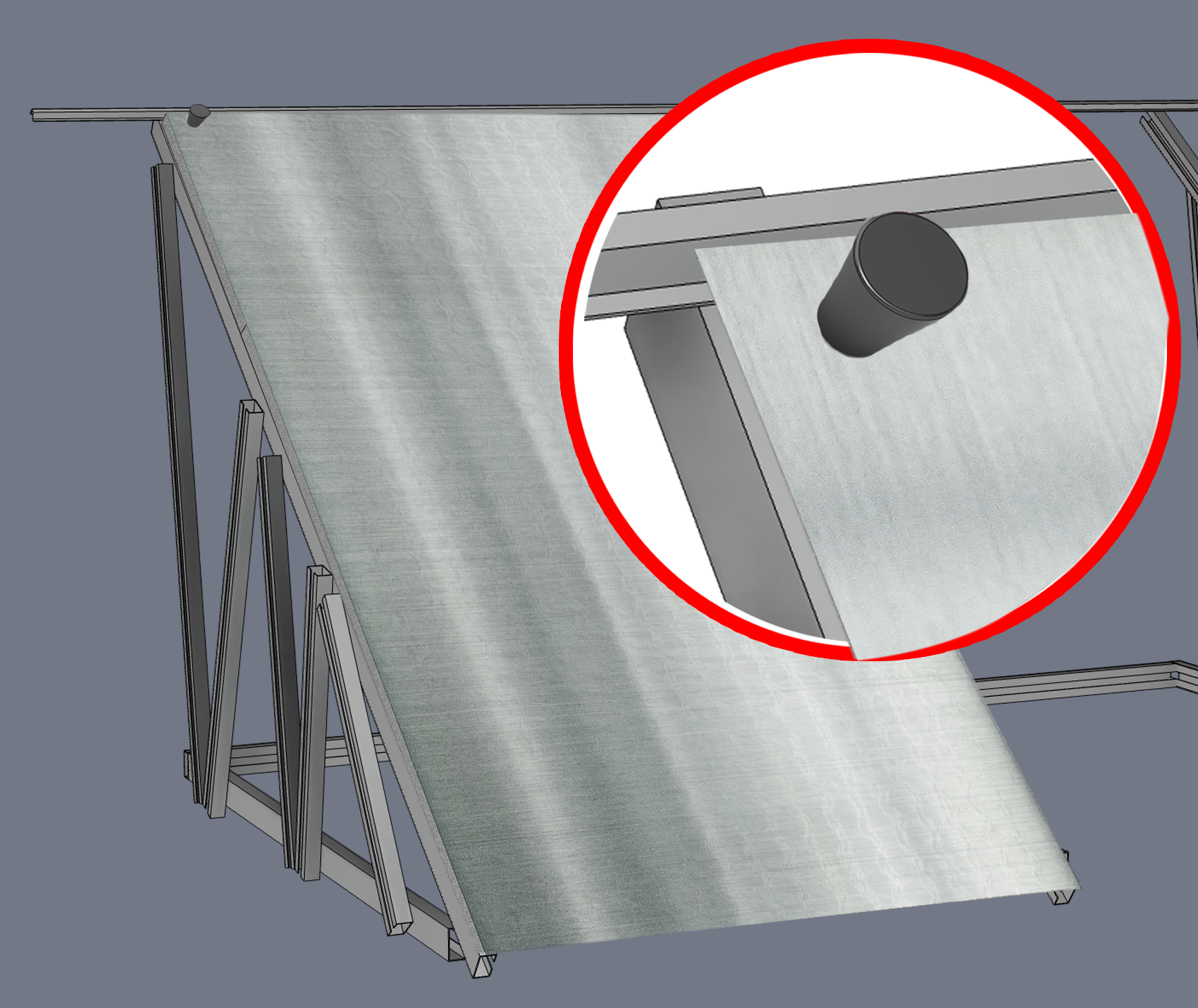

2. Secure one end of the first sheet using roofing screws or roofing nails to prevent it from moving during installation.

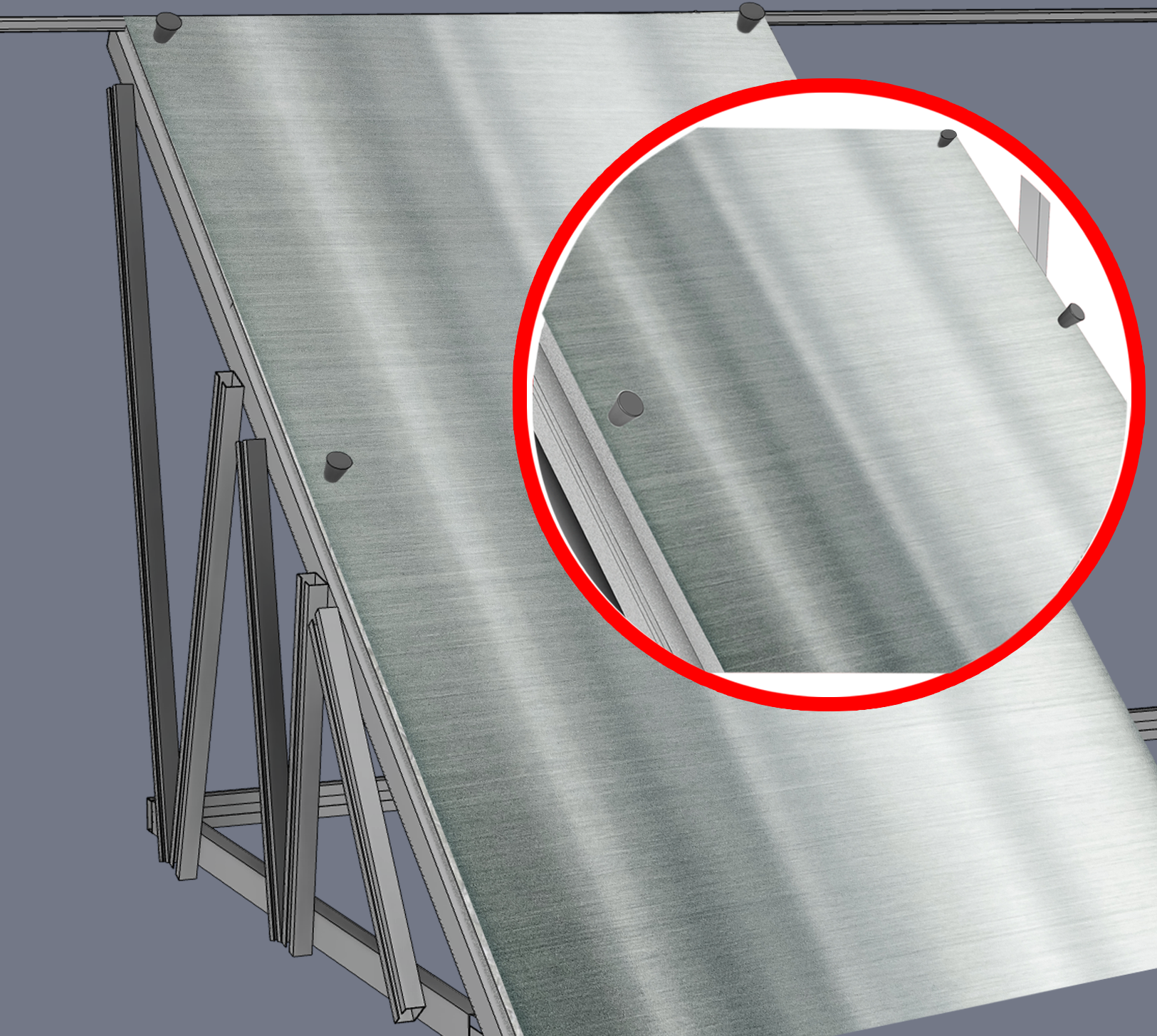

3. Pull the insulation sheet tight to eliminate sagging, then fasten the center of the sheet using roofing screws or roofing nails.

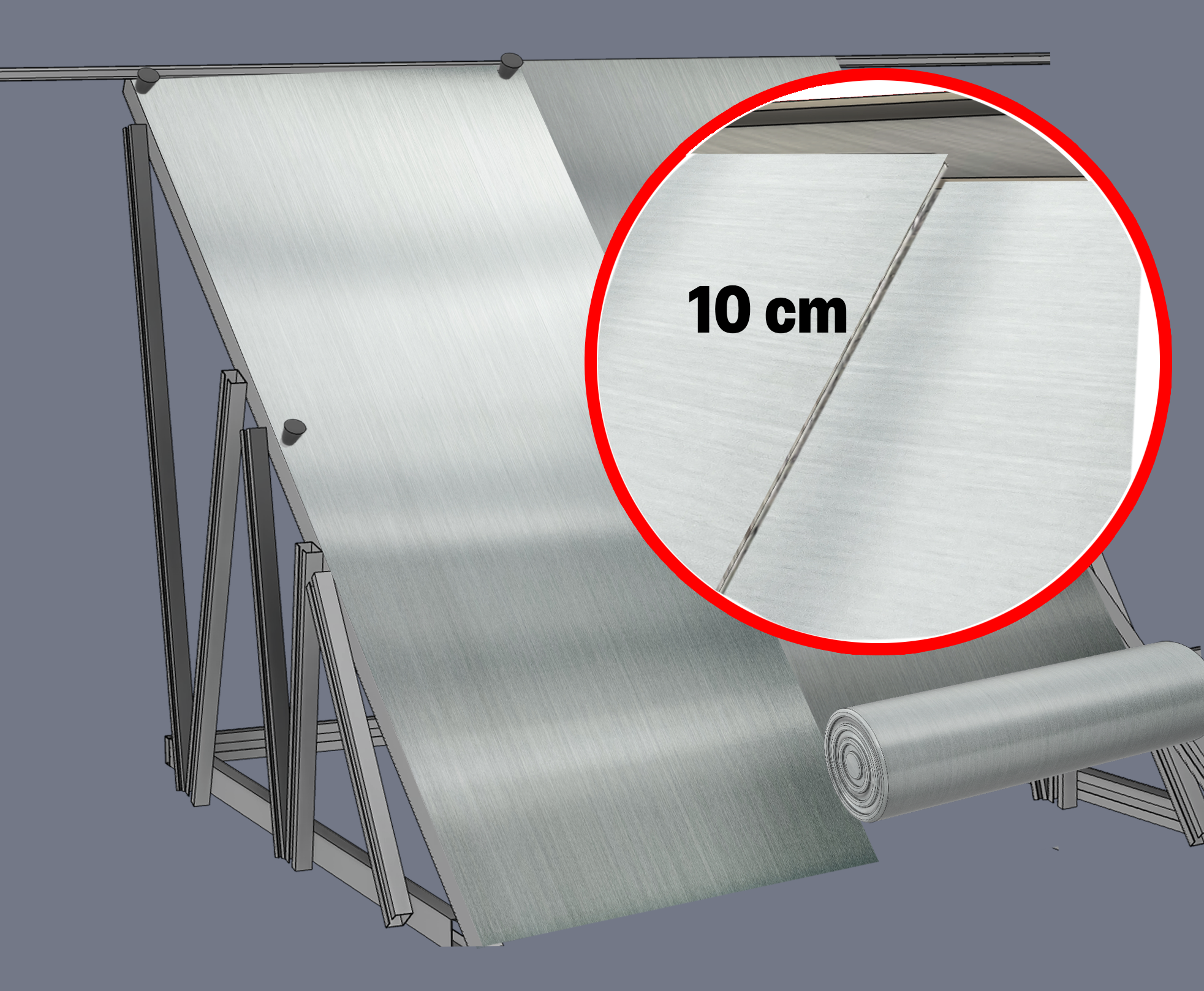

4. Install the next sheet alongside the first with a minimum overlap of 100 mm.

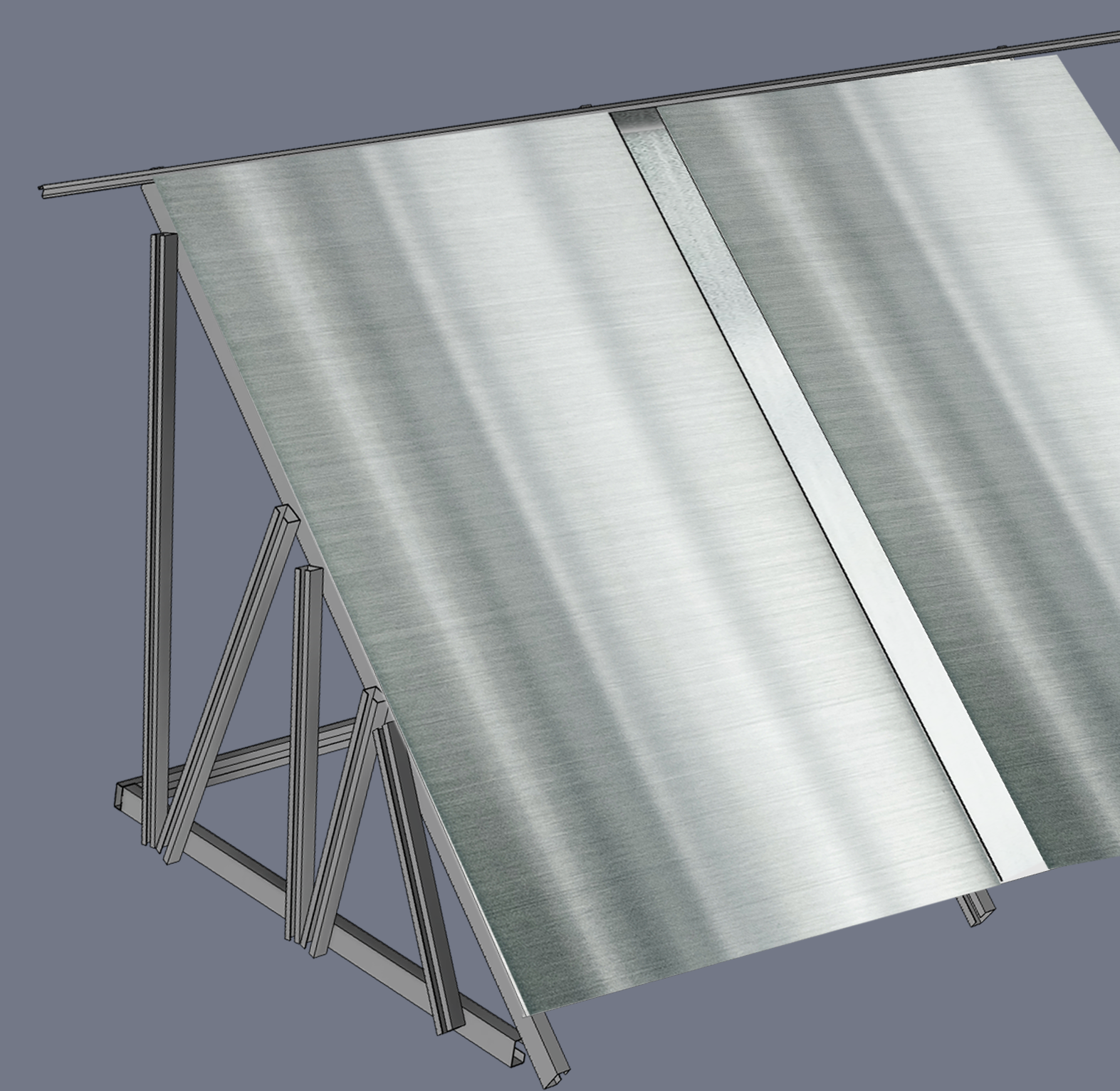

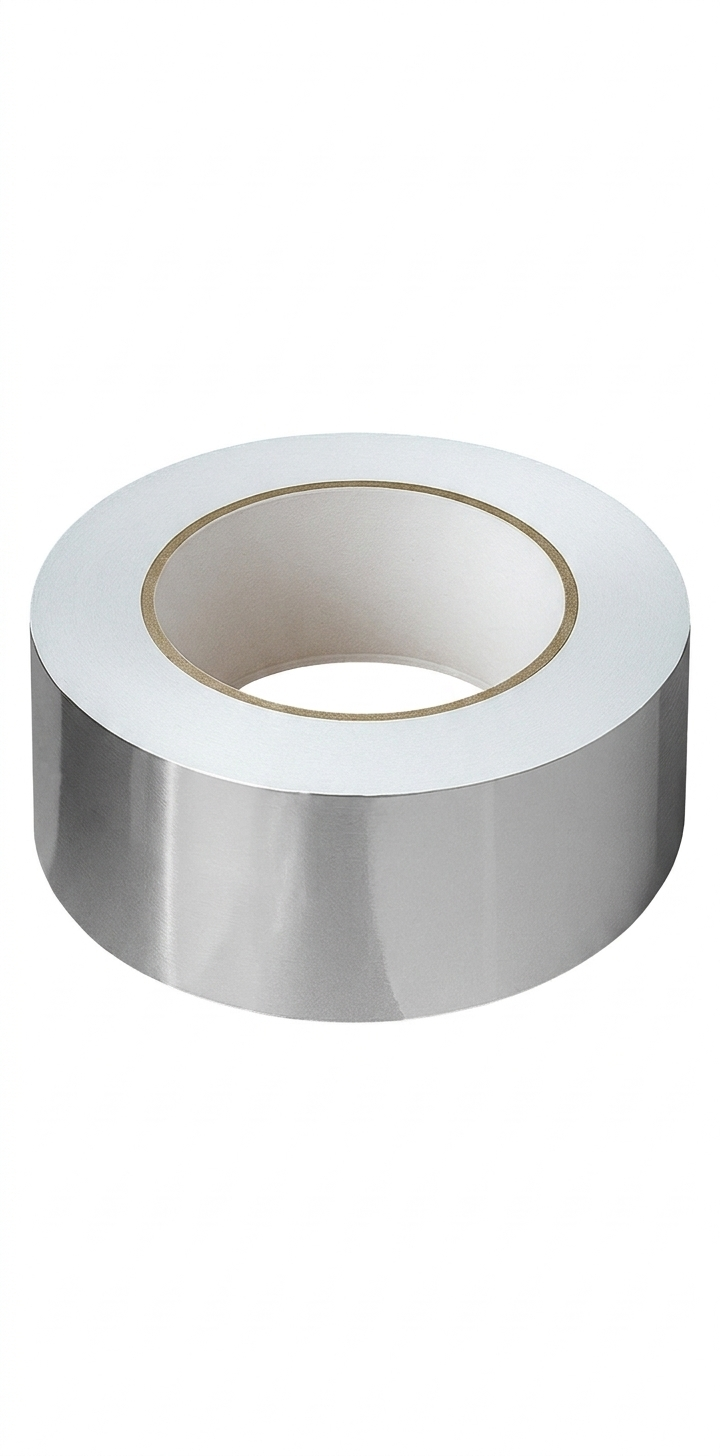

5. Seal all overlaps with aluminum foil tape to prevent air leakage. Ensure the insulation is installed flat and securely before proceeding.

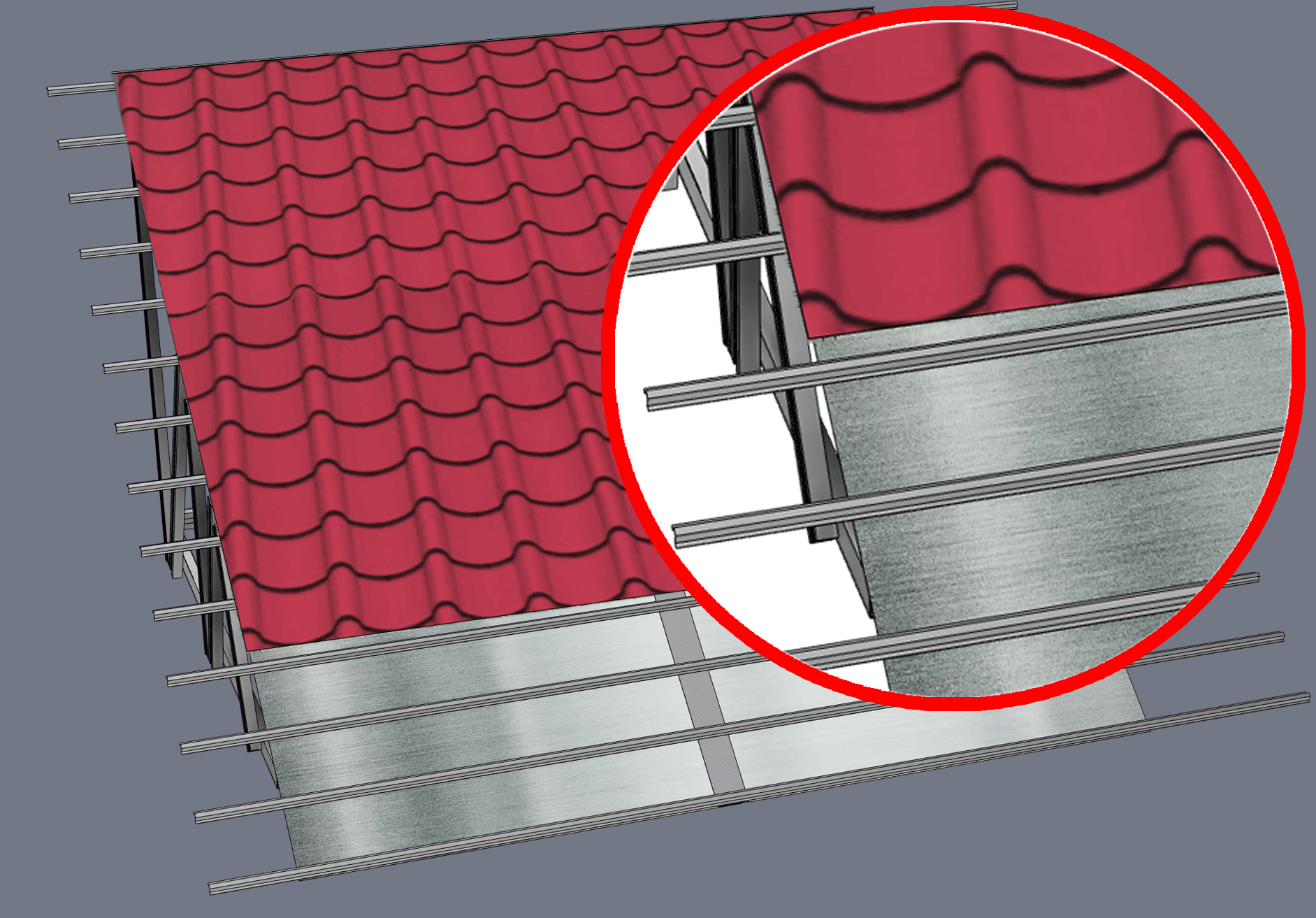

6. Once the Ice Cool insulation is installed, install the roof battens and roof covering according to the specified spacing and the project's roof construction requirements.
Bahasa

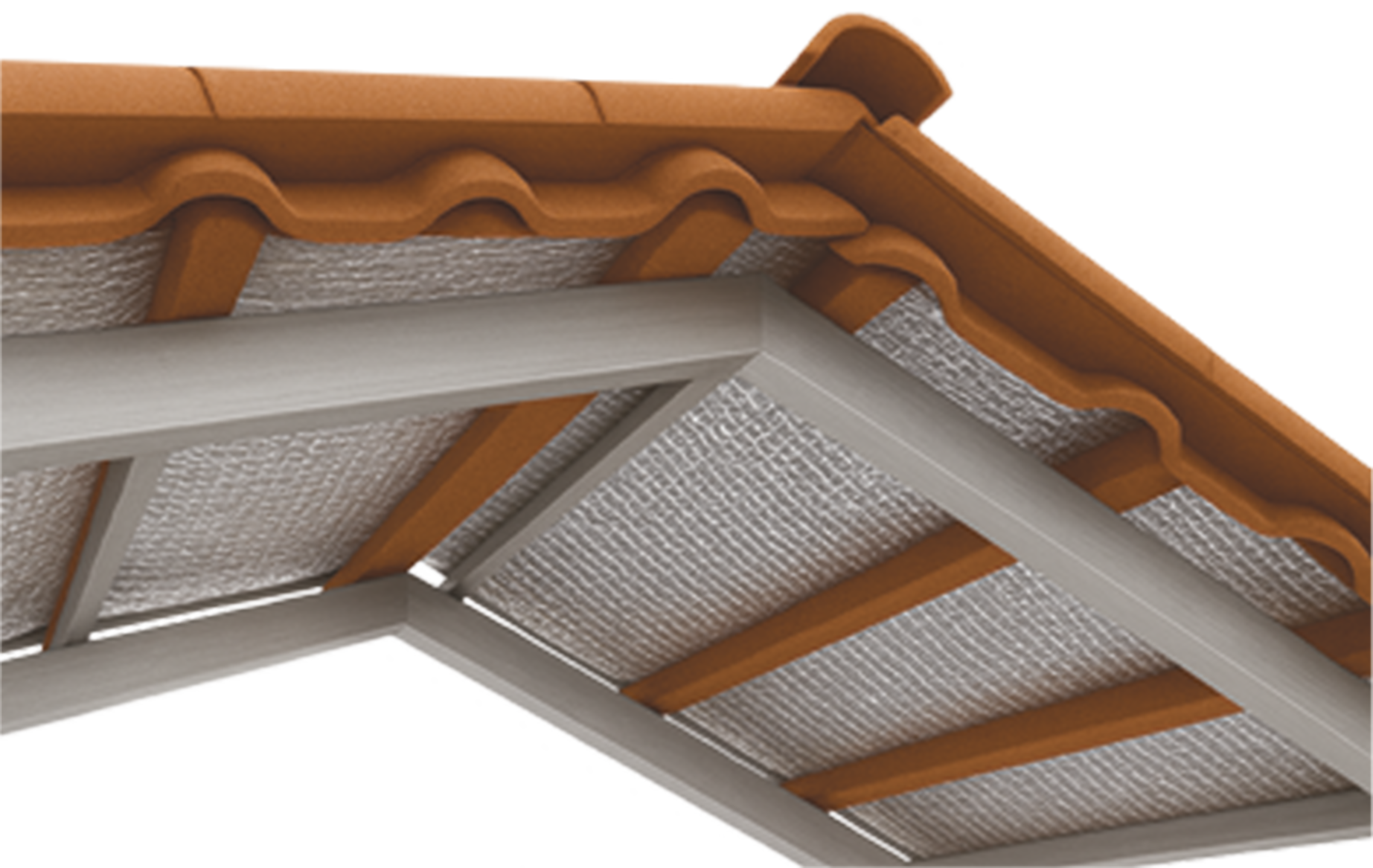

.png "Atap")

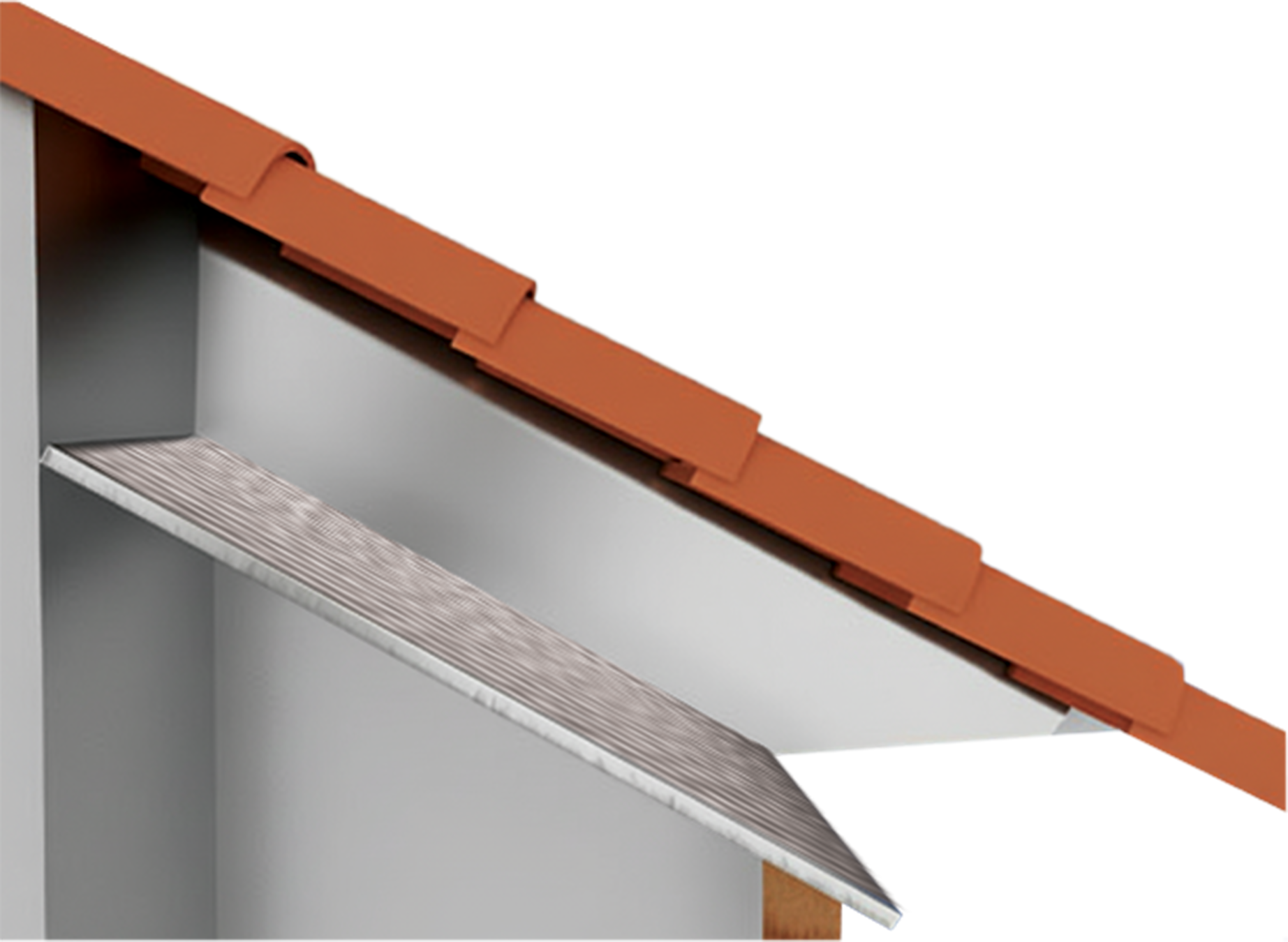

.png "Plafon")
