Casali Eradix

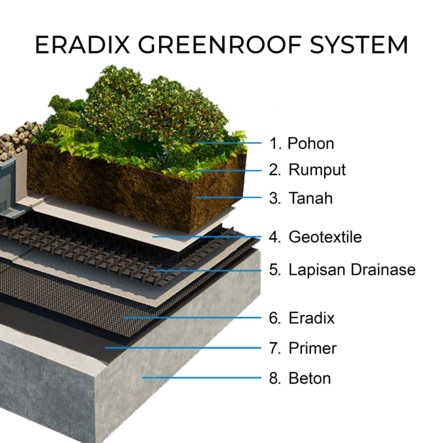

Casali Eradix is a waterproofing membrane designed to prevent root penetration into building structures, making it ideal for rooftop garden applications. It is reinforced with layers of bitumen, polypropylene, and Preventol B2 from Bayer, providing effective protection for building structures against plant root intrusion.

- Roll Size: 1 m × 10 m
- Roll Weight: 48 kg
- Thickness: 4 mm

Italian Technology

Developed using Italian technology that has been refined since 1960.

High Strength

Reinforced with flexible and durable polyester fibers for enhanced strength.

High Temperature Resistance

Designed to remain stable under high temperatures without deformation.

UV Resistant

Maintains performance even under direct UV exposure.

Strong Adhesion

Provides excellent bonding when applied to concrete surfaces.

All-Weather Durability

Remains durable even under heat, rain, and strong winds.

Specifications	Standard	Unit	Eradix
Finishing	-	-	PBS
Reinforcement Type	-	-	POLYESTER
Mass per Unit Area	EN 1849-1	kg/m²	-
Length	EN 1849-1	mm-m	10
Thickness	EN 1849-1	mm	4
Ultimate Tensile Strength
Maximum Resistance at Break (Longitudinal/Transversal)	EN 12311-1	N/5cm	600 / 500
Elongation at Break (Longitudinal/Transversal)	EN 12311-1	%	40 / 40
Tear Resistance
Maximum Resistance at Break (Longitudinal/Transversal)	EN 12310-1	N	150 / 150
Low Temperature Flexibility	EN 1109	°C	-10
Heat Stability	EN 1110	°C	+100
Softening Point	ASTM D 36-38	°C	-
Root Proof	EN 13948	-	PASS

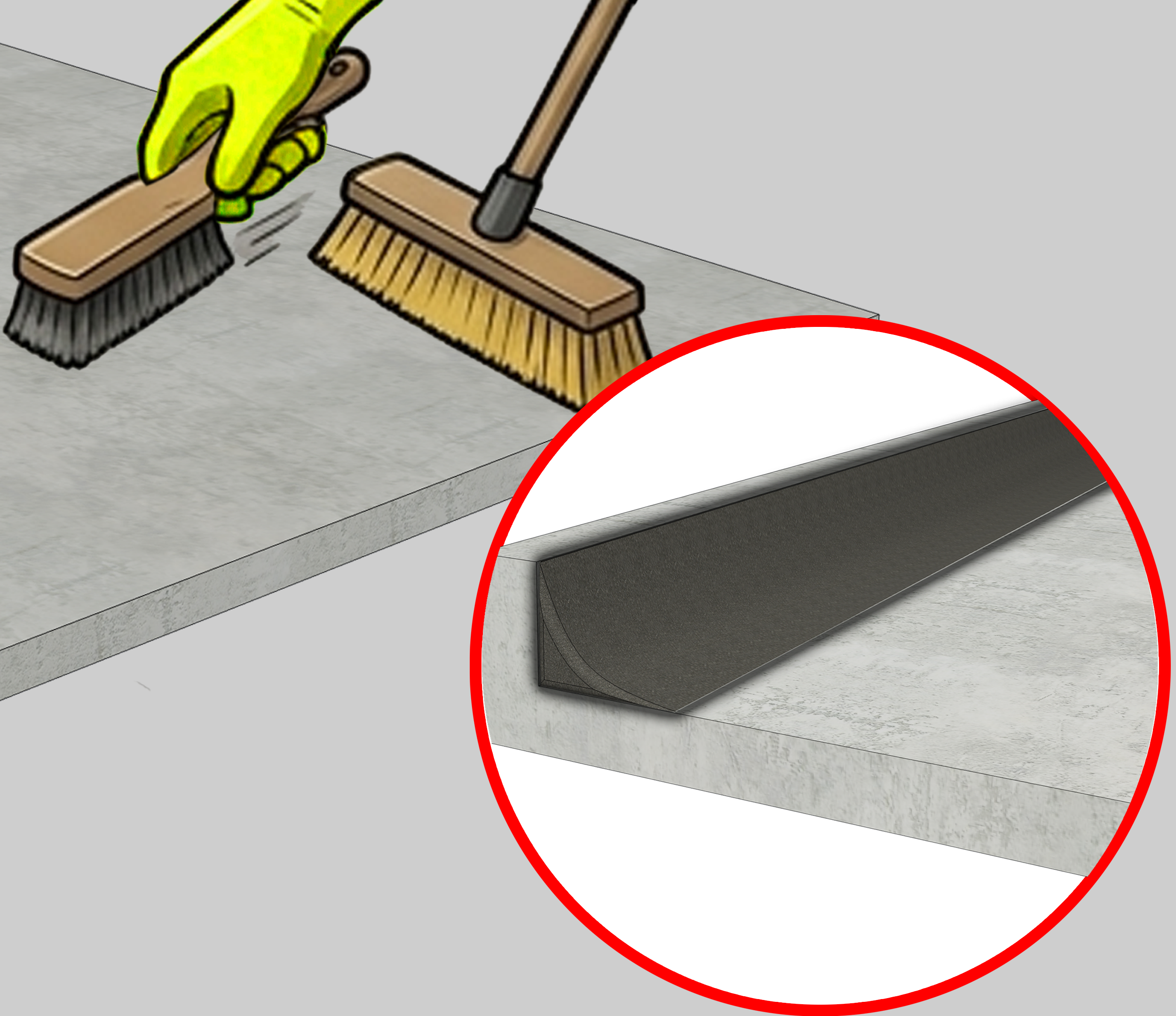

Ensure the concrete roof slab is clean, dry, and free from dust, debris, oil, and standing water. Repair any hairline cracks using instant cement or sealant until the surface is level and smooth.

1. Ensure the concrete roof slab is clean, dry, and free from dust, debris, oil, and standing water. Repair any hairline cracks using instant cement or sealant until the surface is level and smooth.

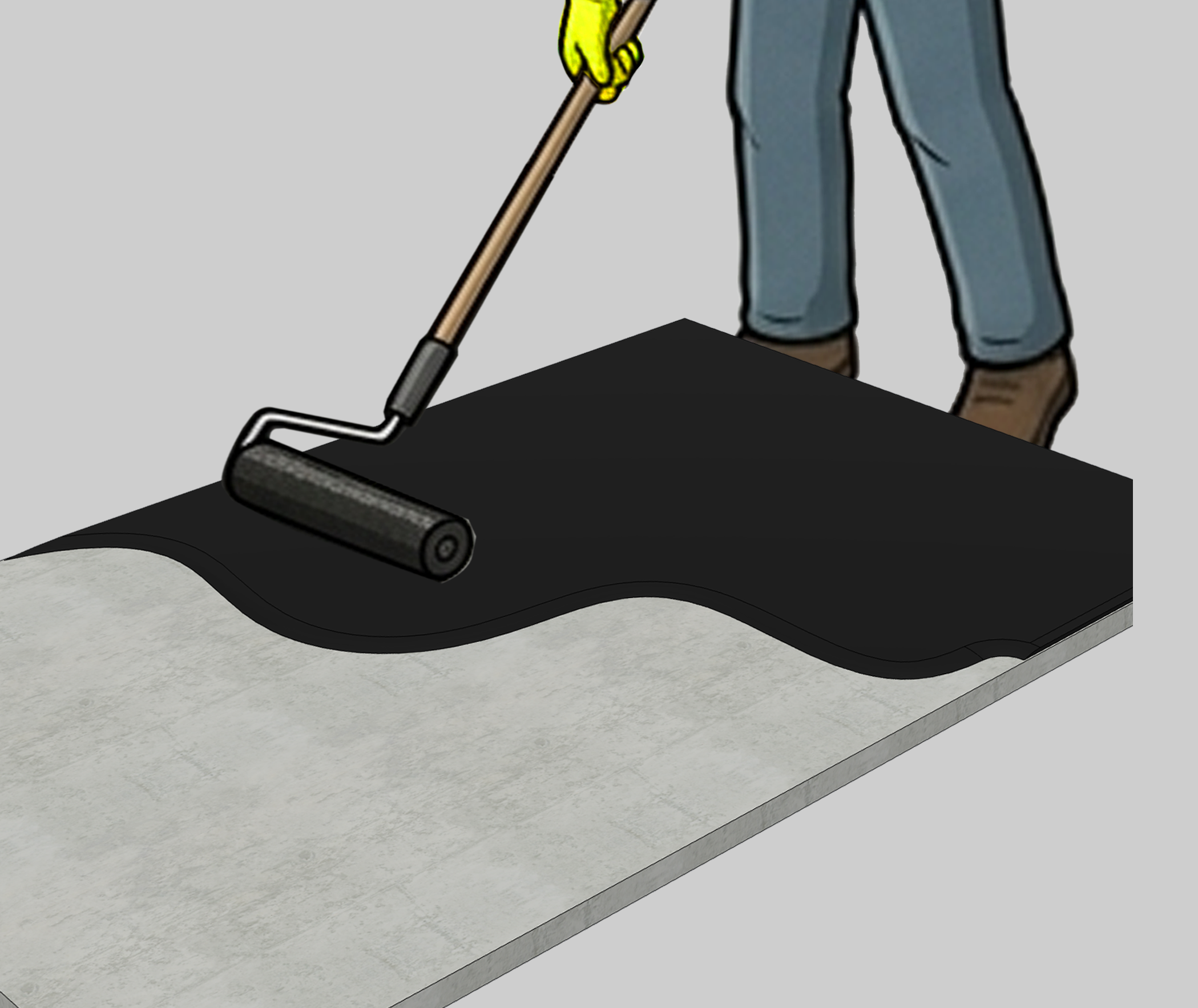

Apply bitumen primer evenly over the entire surface. Allow it to dry to a tack-free condition (approximately 2–4 hours, depending on weather conditions). The primer acts as a bonding layer between the concrete substrate and the membrane.

2. Apply bitumen primer evenly over the entire surface. Allow it to dry to a tack-free condition (approximately 2–4 hours, depending on weather conditions). The primer acts as a bonding layer between the concrete substrate and the membrane.

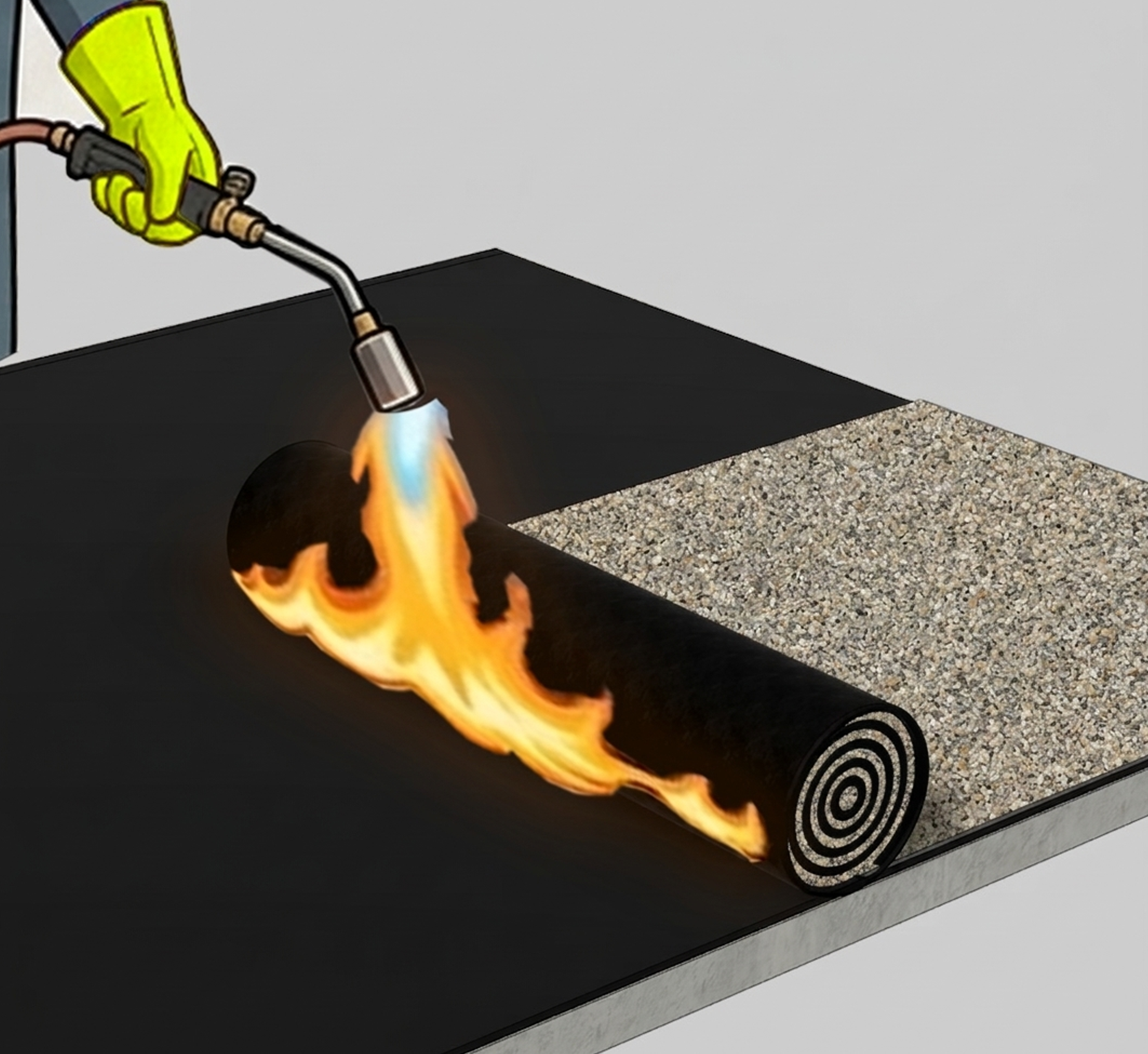

Position the Casali membrane over the application area. Heat the underside of the membrane using a gas torch, then gradually roll it forward while continuously applying heat. Ensure the flame is evenly distributed to achieve proper adhesion.

3. Position the Casali membrane over the application area. Heat the underside of the membrane using a gas torch, then gradually roll it forward while continuously applying heat. Ensure the flame is evenly distributed to achieve proper adhesion.

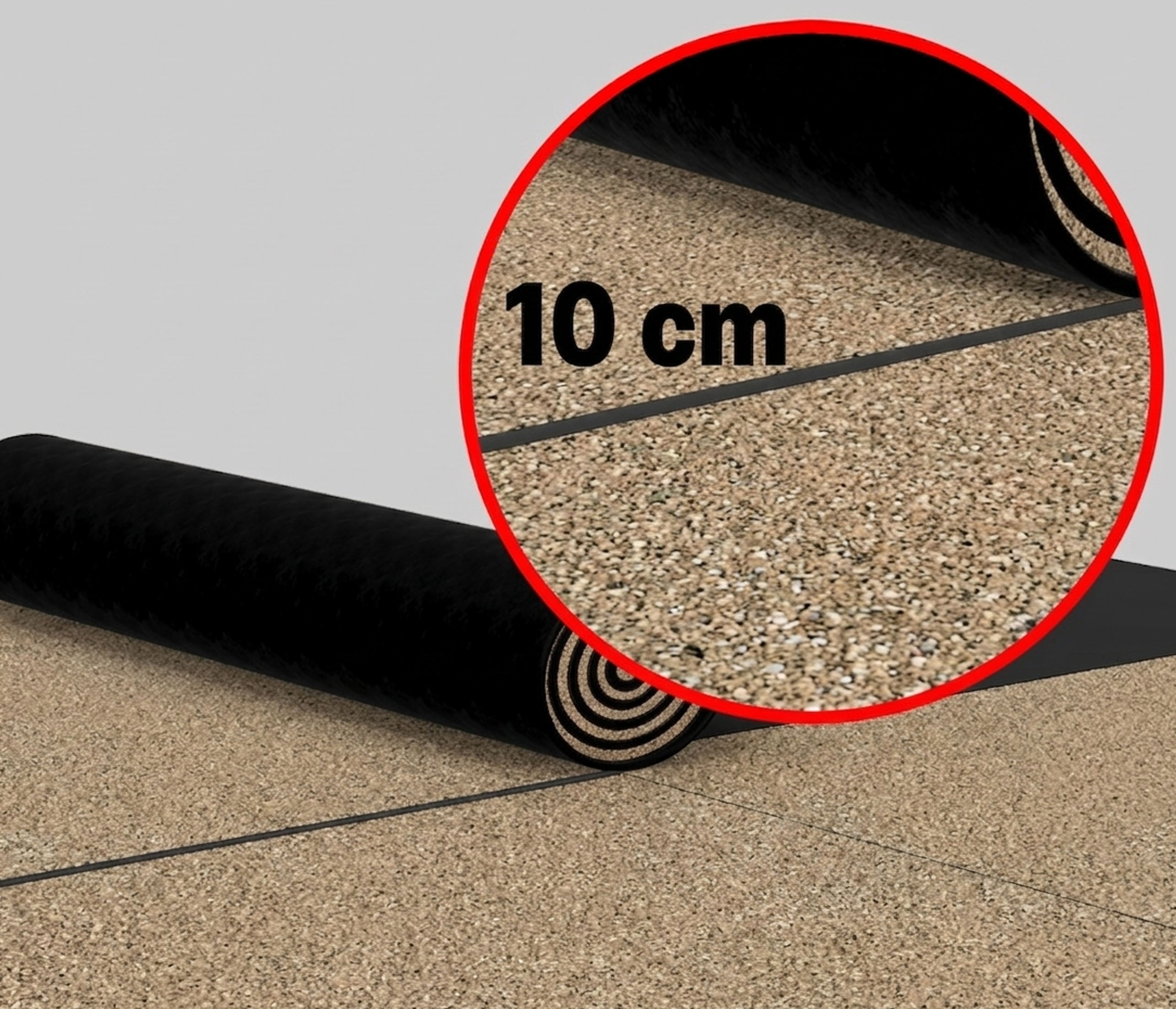

Install each membrane sheet with an overlap of 10–15 cm. Carefully heat the overlapping areas and press firmly to ensure a secure and watertight bond.

4. Install each membrane sheet with an overlap of 10–15 cm. Carefully heat the overlapping areas and press firmly to ensure a secure and watertight bond.

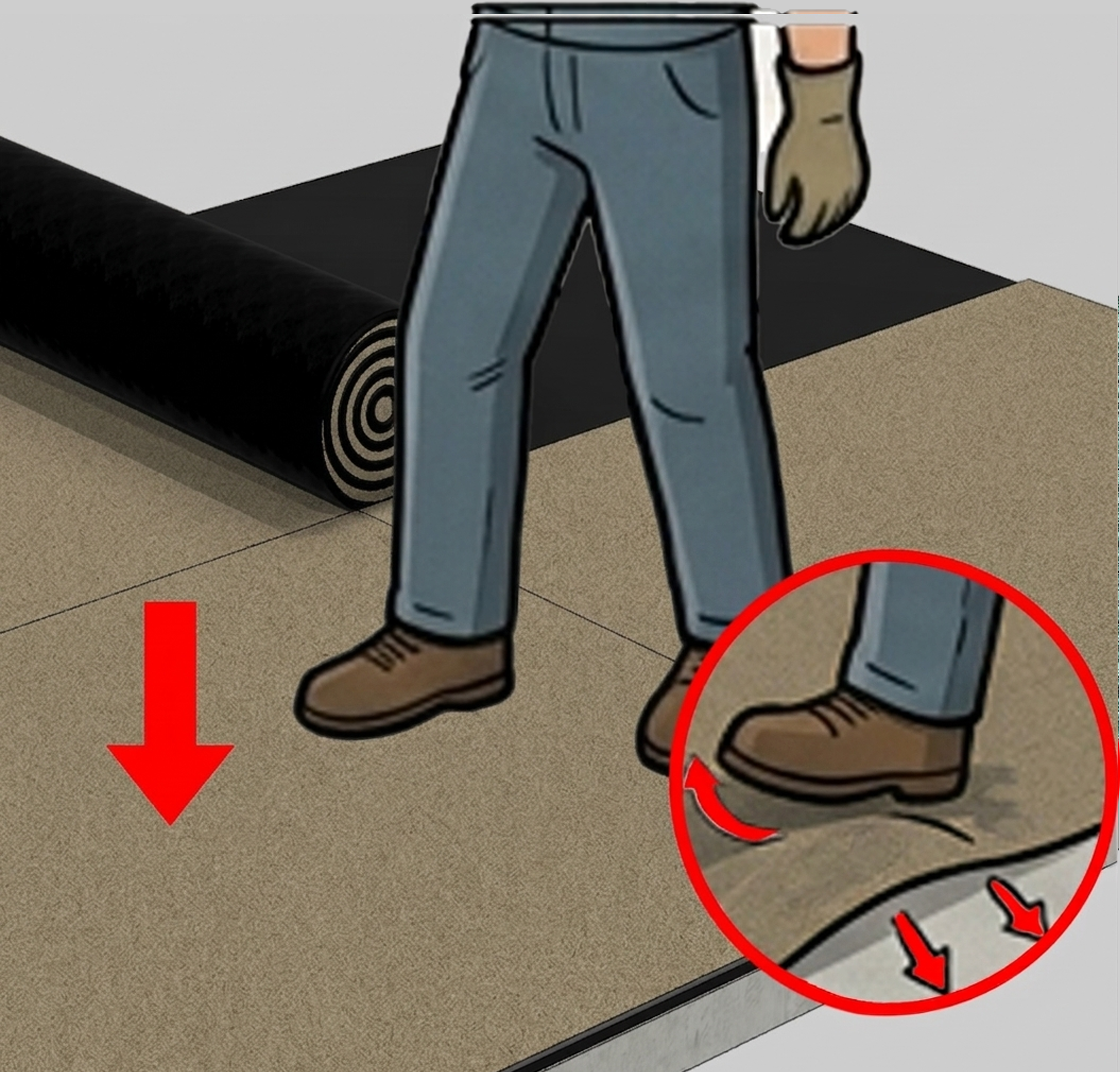

5. Press the installed membrane using foot pressure or a roller to ensure full contact with the substrate and to eliminate trapped air or bubbles.

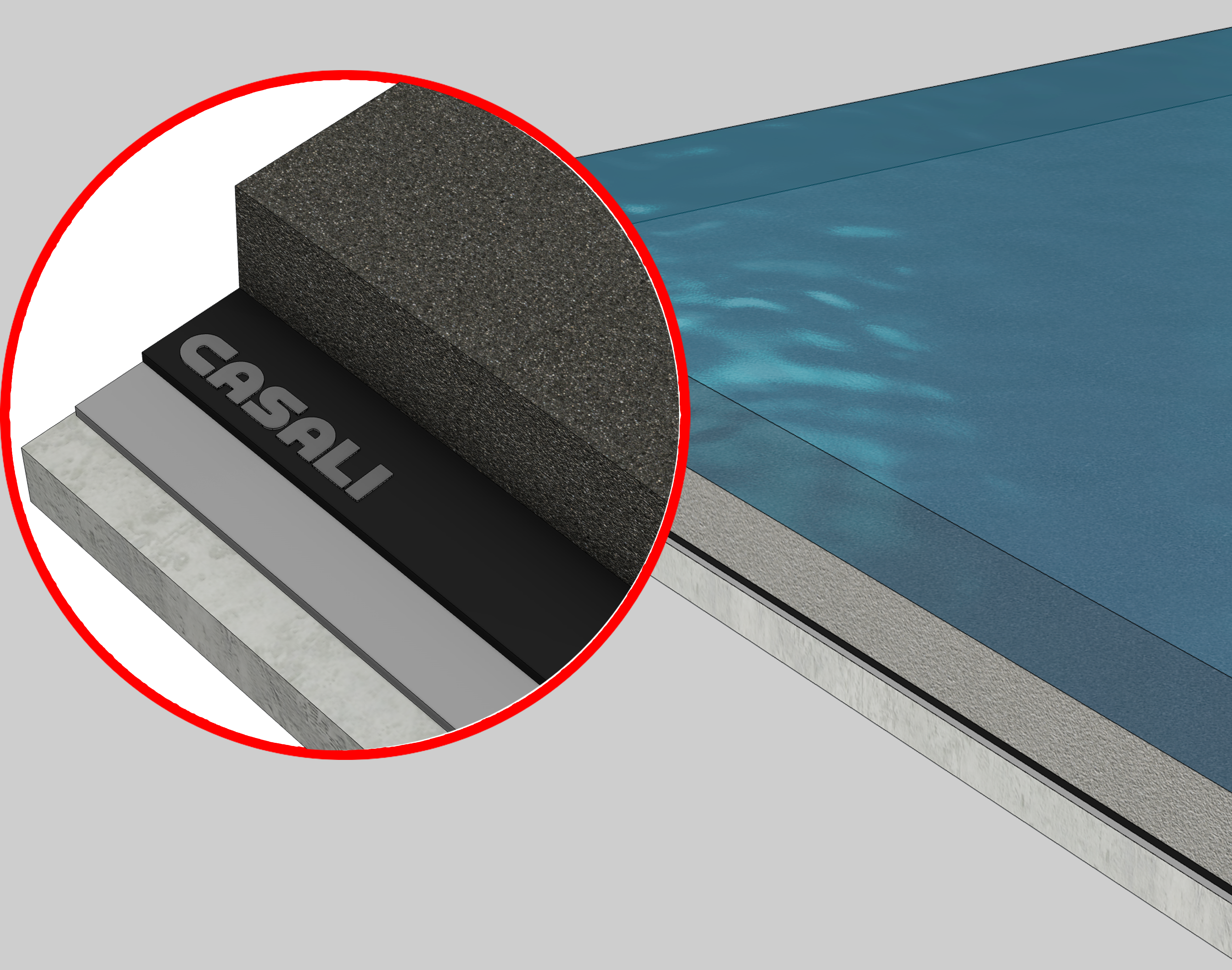

After installation is complete and the membrane has cooled, perform a ponding test for 24–48 hours to ensure the system is watertight and free from leakage.

6. After installation is complete and the membrane has cooled, perform a ponding test for 24–48 hours to ensure the system is watertight and free from leakage.
